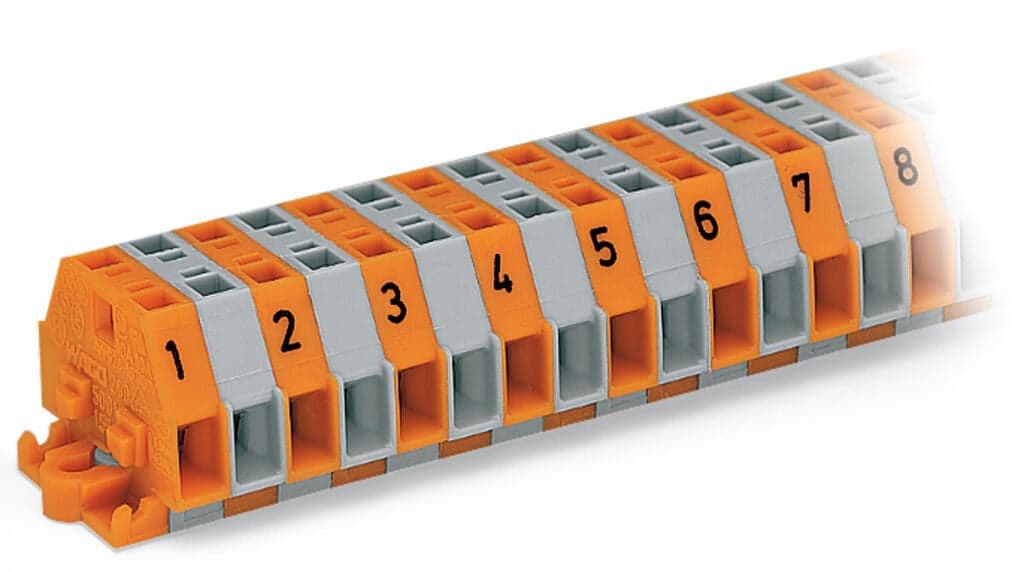

Product Model
260-420
Selling Points
- 1High-reliability connectors for critical industrial applications.
- 2Efficient connections with minimal contact resistance.
- 3Durable design withstanding harsh environmental conditions.
- 4Easy installation and maintenance with secure locking mechanism.
- 5Compatible with a wide range of industrial devices and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 20 | Number of levels | 1 |
Width | 113.7?mm?/ 4.473?inches | Height from the surface | 17.1?mm?/ 0.673?inches |
Depth | 25.1?mm?/ 0.988?inches | Module width | 5?mm?/ 0.197?inches |
Design | horizontal type | Mounting type | Mounting flange |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | multi-colored | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 1.307MJ | Weight | 65.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918600620 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 18A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 20 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
