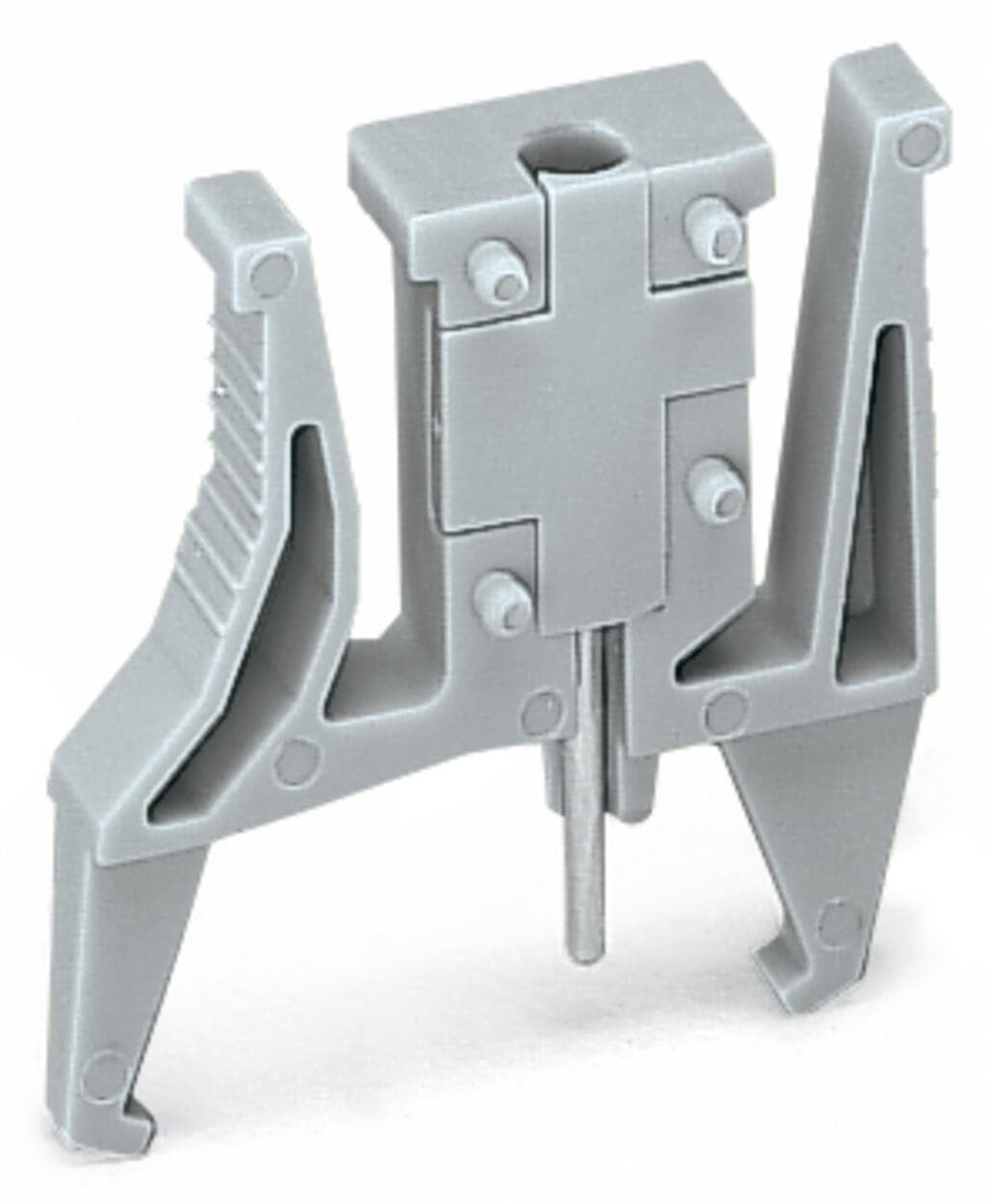

Product Model
261-404
Selling Points
- 1Modular design for easy connection and disconnection.
- 2Equipped with locking latches for secure testing.
- 3Compatible with 2-conductor terminal blocks.
- 4Rated current of 0.5A for reliable testing.
- 5Gray color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 6?mm?/ 0.236?inches | Module width | 6?mm?/ 0.236?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 2.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821868958 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 277569a6-3c62-4aec-8c84-4fea3b95a98a |
SCIP notification number (Belgium) | efdf1afd-c9a4-4b52-afff-d02a297a159a | SCIP notification number (Bulgaria) | af199999-a42a-4f9e-847a-016583a6ec7f |
SCIP notification number (Czech Republic) | 50337d2f-173c-4c86-8829-b7f708954a23 | SCIP notification number (Denmark) | ed7d0ee4-53fe-4eb0-a8c1-543eec585f4b |
SCIP notification number (Finland) | 0fd93198-e575-40cb-b00c-3509f13ac289 | SCIP notification number (France) | 52c91b9f-6bea-4555-b7a7-b2046c73a39b |
SCIP notification number (Germany) | bbf442ee-f8c9-4b37-8168-a3368ab10bb9 | SCIP notification number (Hungary) | acf80076-75ec-4bc7-82de-101b5f770197 |
SCIP notification number (Italy) | a2374a79-a9c7-40e2-96c8-cd50f97c0ca8 | SCIP notification number (Netherlands) | 926eb167-a5c6-4217-81f3-34d38a3441ae |
SCIP notification number (Poland) | 364f524c-7bd0-4ede-83eb-8af74da088c9 | SCIP notification number (Romania) | ba195b19-5c4f-4cad-be28-21f54f437a87 |
SCIP notification number (Sweden) | 25ed6de5-fa7d-4136-a45f-e68e4bfbbb26 | Rated voltage (III / 3) | 400V |
Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) | Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) |
Test voltage | 48V | Test current | 0.5A |
Specifications may be subject to change without notice
