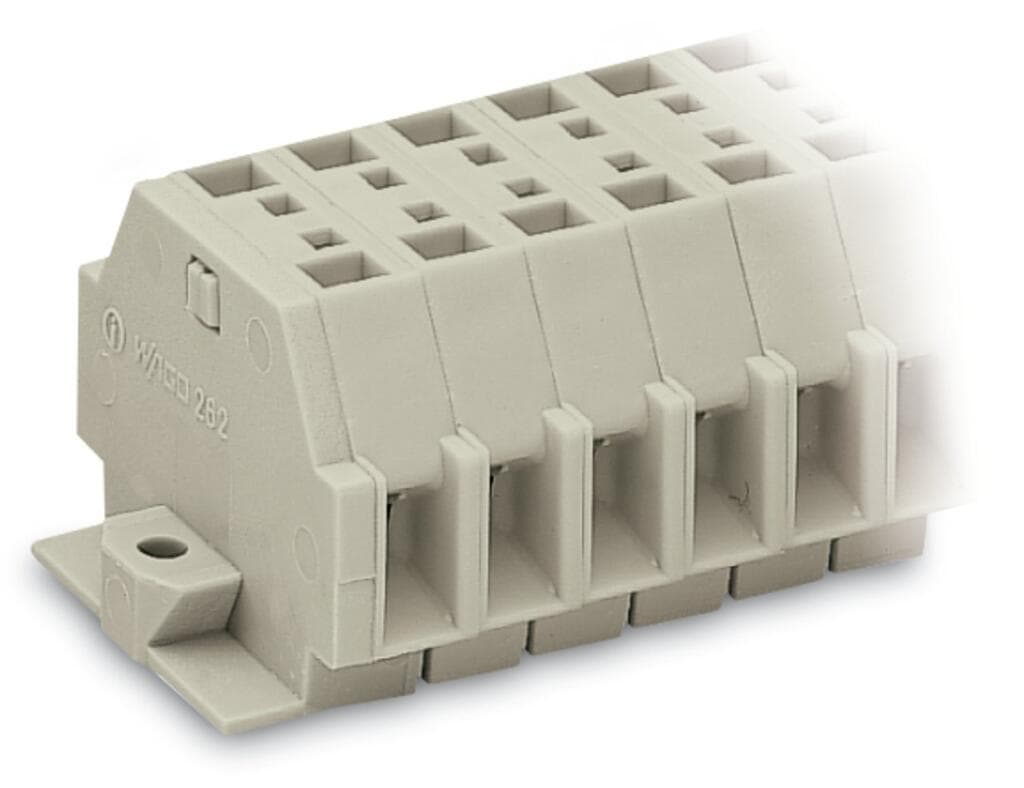

Product Model
262-134
Selling Points
- 1Suitable for hazardous environments with a fire load of 0.364 MJ and flammability class V0.
- 2Supports wire sizes from 0.5mm² to 4mm² or #20AWG to #12AWG with a rated current of 23A.
- 3Includes fixing flanges for screw or similar mounting types with a 3.2mm fixing hole.
- 4Compatible with DIN 35 rail using the 209-123 mounting carrier.
- 5Made from light gray material, ensuring durability and visibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Total number of potentials | 4 |
Number of levels | 1 | Width | 42.4?mm?/ 1.669?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Module width | 7?mm?/ 0.276?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.364MJ |
Halogen-free | Yes | Weight | 19.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918639934 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 23A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Number of poles | 4 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
