Product Model

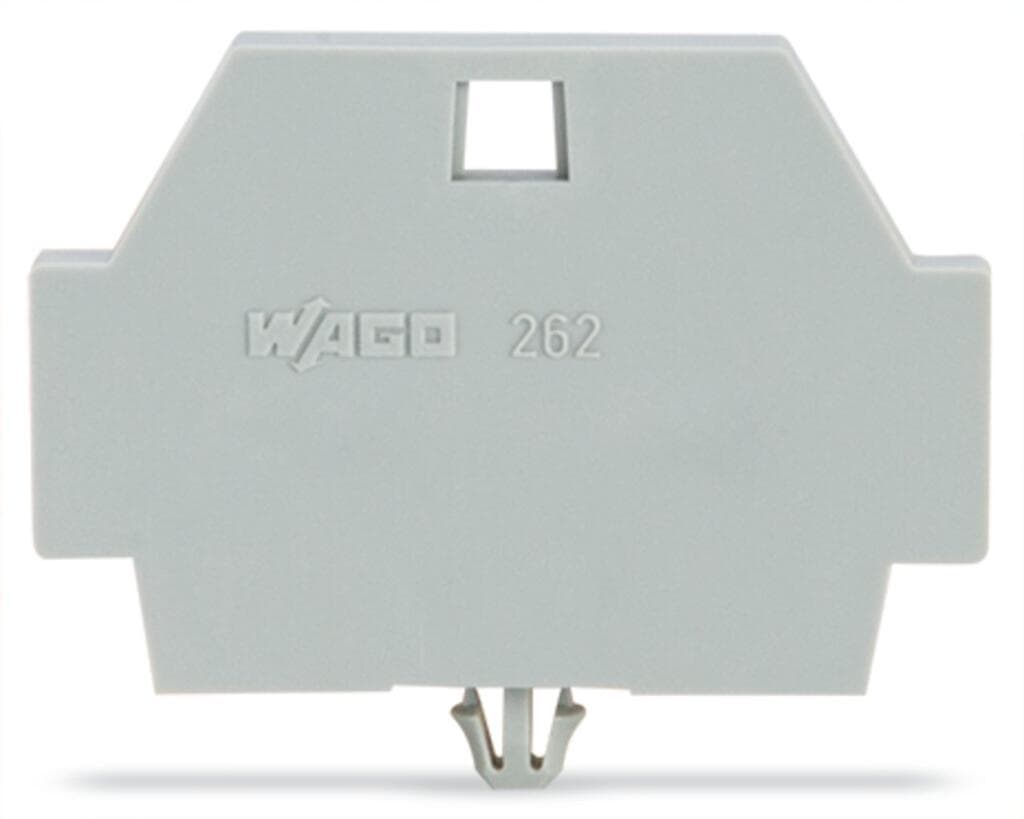

262-371
Selling Points
- 1High-Voltage Capability: Supports up to 800 V and 24 A.
- 2Snap-In Mounting: Easy installation with snap-in mounting feet.
- 3Ex e II Certification: Suitable for explosive environments.
- 4Versatile Connectivity: Accommodates conductors from AWG 28 to 12.
- 5Durable Construction: Built with solid terminal strips for reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 23?mm?/ 0.906?inches |
Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.054MJ | Weight | 1.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(50)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4017332143066 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
