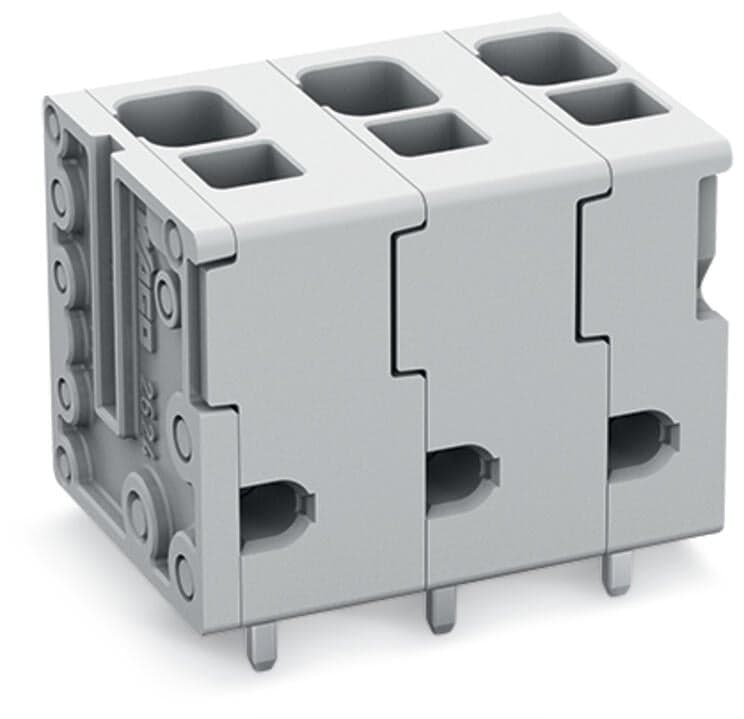

Product Model
2624-3303/000-004
Selling Points
- 1Versatile Conductor Support: Supports solid and fine-stranded conductors from 0.2 to 6 mm² (24 to 10 AWG).
- 2High Voltage Ratings: Rated for 630 V nominal voltage, 6 kV surge voltage, and 1000 V nominal voltage for overvoltage category III.
- 3Durable Materials: Constructed with polyamide (PA66) insulation, electrolytic copper contacts, and chrome-nickel spring steel clamping springs.
- 4Easy Installation: Features push-in CAGE CLAMP connection for quick and secure conductor termination.
- 5Wide Application Range: Ideal for panel feedthrough applications with testing capabilities both parallel and perpendicular to conductor entry.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5 mm / 0.295 inches |
Width | 21.5 mm / 0.846 inches | Height | 20.3 mm / 0.799 inches |
Height from the surface | 16.3 mm / 0.642 inches | Depth | 16.3 mm / 0.642 inches |
Solder pin length | 4mm | Solder pin dimensions | 0.8 x 1 mm |
Drilled hole diameter with tolerance | 1.3(+0.1)mm | Mounting type | Feed-through mounting |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.033MJ |
Weight | 5.6g | Limit temperature range | -60 … +105 °C |
Processing temperature | -35 … +60 °C | Continuous operating temperature | -60 … +105 °C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 90 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966495720 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 630V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 26A | Rated voltage UL (Use Group C) | 150V |
Rated current UL (Use Group C) | 26A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 26A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.2 … 6 mm2 / 24 … 10 AWG |
Fine-stranded conductor | 0.2 … 6 mm2 / 24 … 10 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 1.5 mm2 |
Strip length | 10 … 12 mm / 0.39 … 0.47 inches | Conductor connection direction to PCB | 90° |
Number of poles | 3 |
Specifications may be subject to change without notice
