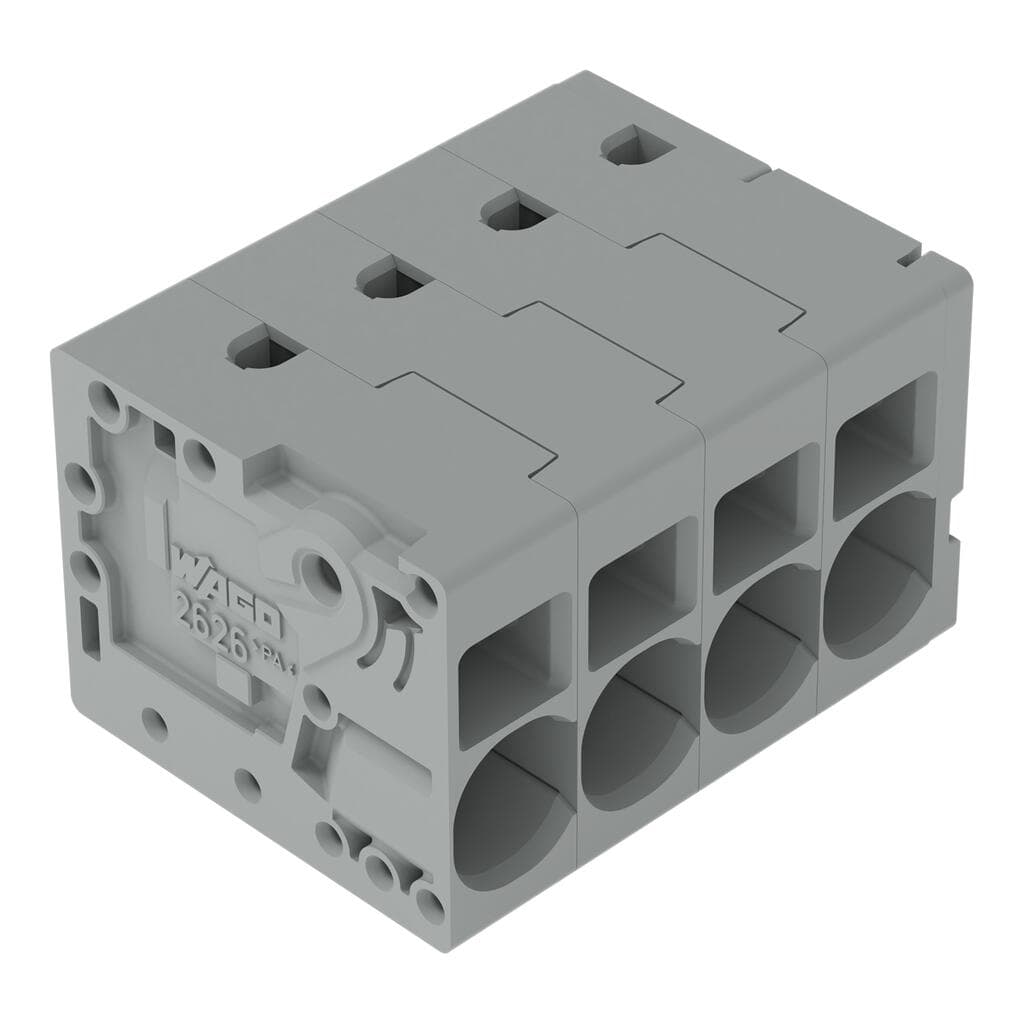

Product Model
2626-1103/020-004
Selling Points
- 1Reliable Connection Technology: Push-in CAGE CLAMP ensures secure and fast termination of solid and ferruled conductors.
- 2Versatile Application: Suitable for drive and controller technology, lighting industry, and other demanding applications.
- 3High Current Rating: Supports up to 38A current, making it ideal for high-power circuits.
- 4Wide Operating Temperature Range: Operates from -60°C to +105°C, ensuring reliability in diverse environments.
- 5Compliant with EU RoHS: Meets environmental regulations, ensuring eco-friendly and compliant usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 24.3?mm?/ 0.957?inches | Height | 23.6?mm?/ 0.929?inches |
Height from the surface | 19.6?mm?/ 0.772?inches | Depth | 24.2?mm?/ 0.953?inches |
Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1?mm |
Drilled hole diameter with tolerance | 2(+0.1)mm | Mounting type | Feed-through mounting |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (staggered) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.023MJ |
Weight | 12g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 90?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143766043 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 48A | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 38A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 38A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 31A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 31A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 |
Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Conductor connection direction to PCB | 0° | Number of poles | 3 |
Specifications may be subject to change without notice
