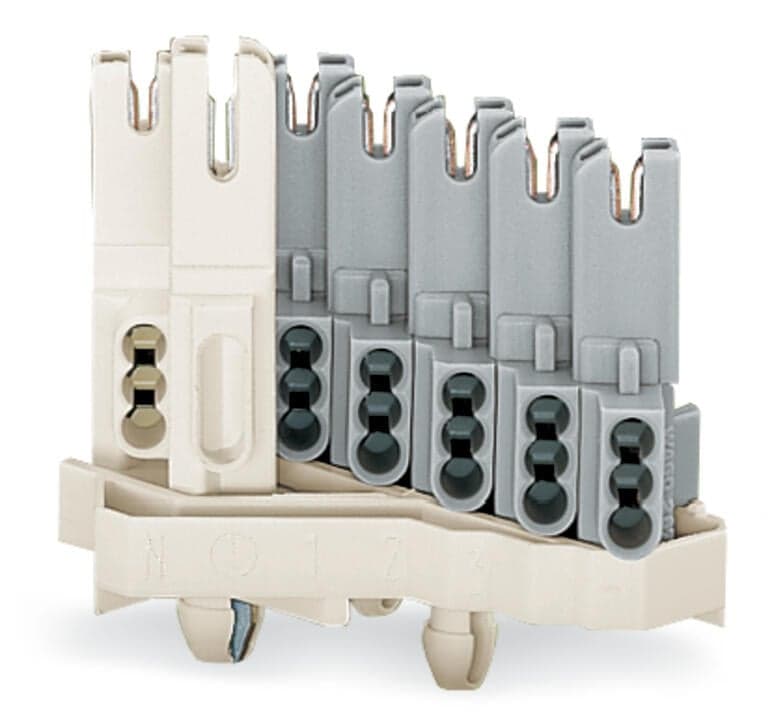

Product Model
267-173
Selling Points
- 1High-Quality Material: Made from chrome-nickel spring steel (CrNi) for durability and reliability.
- 2Compact Design: Easy to integrate into modular systems, enhancing system flexibility.
- 3Direct Ground Contact: Ensures secure and stable connections in electrical installations.
- 4Flexible Connectivity: Compatible with a range of systems, including PCB terminal blocks and lighting connectors.
- 5Compliant with Standards: Meets IEC/EN 60664-1 ratings and UL94 V0 flammability class for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of connection types | 1 | Width | 26?mm?/ 1.024?inches |
Height from the surface | 34?mm?/ 1.339?inches | Depth | 42?mm?/ 1.654?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.223MJ | Weight | 7.1g |
Temperature stability | 105°C | Product Group | 8 (Misc. Chassis Mount Blocks) |
eCl@ss 10.0 | 27-44-03-14 | eCl@ss 9.0 | 27-44-03-14 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC000458 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
Packaging type | bag | Country of origin | PL |
GTIN | 4044918499736 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 500V | Rated surge voltage (III/2) | 4kV |
Rated current | 6A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | PUSH WIRE? | Strip length | 8?mm?/ 0.31?inches |
Number of poles | 3 |
Specifications may be subject to change without notice
