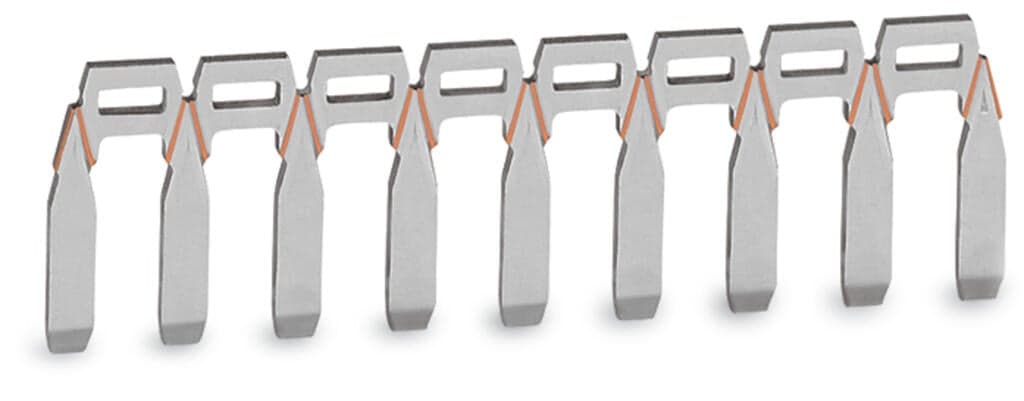

Product Model
270-409
Selling Points
- 1High Current Rating: Rated for 18A, suitable for demanding industrial applications.
- 2Silver-Colored: Durable and corrosion-resistant silver-colored finish.
- 39-Way Configuration: Versatile jumper with 9 poles for multiple connections.
- 4Compact Design: Dimensions of W44mm x D2.5mm for easy integration into systems.
- 5ROHS Compliant: Environmentally friendly, compliant with ROHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Jumpers can be shortened using an electronic side cutter. | Width | 42 mm / 1.654 inches |
Height | 2.5?mm?/ 0.098?inches | Depth | 12 mm / 0.472 inches |
Jumper assignment | 1-2-3-4-5-6-7-8-9 | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Weight | 1.6g |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454223908 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 18A |
Specifications may be subject to change without notice
