Product Model
2706-304/000-009
Selling Points

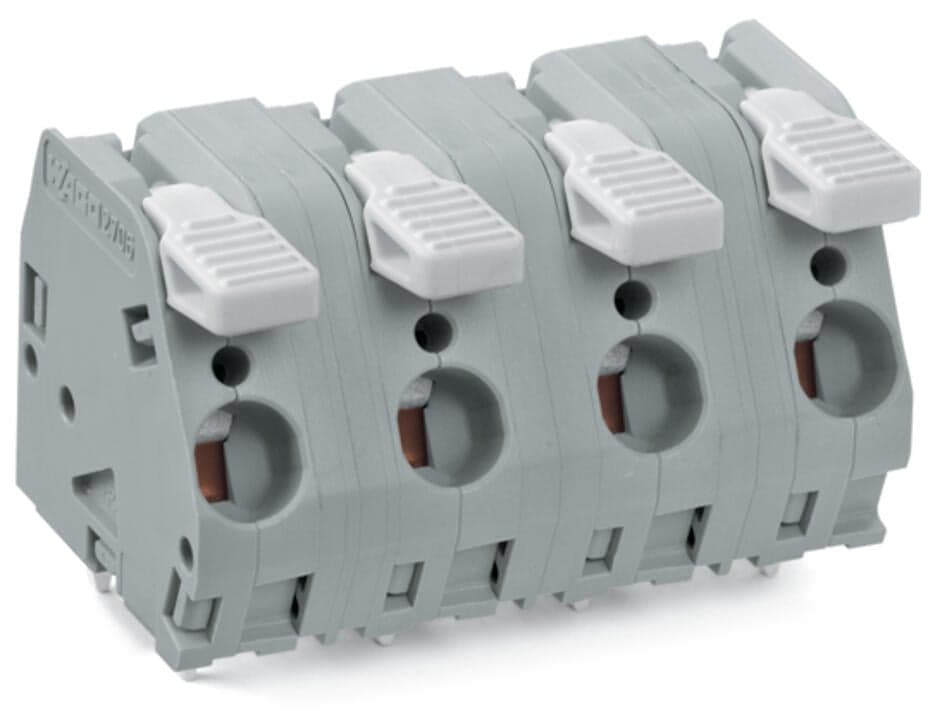

- 1High-current PCB terminal strip with lever-actuated CAGE CLAMP connection.
- 2Tool-free termination with fingers that open and close levers.
- 3Compatible with other WAGO products for seamless integration.
- 46 mm² conductor capacity and 12.5 mm pin spacing for precise connections.
- 5Durable construction with chrome nickel spring steel (CrNi) clamping spring material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 4 |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 12.5 mm / 0.492 inches |
Width | 45 mm / 1.772 inches | Height | 30 mm / 1.181 inches |
Height from the surface | 25.5 mm / 1.004 inches | Depth | 26 mm / 1.024 inches |
Solder pin length | 4.5mm | Solder pin dimensions | 1 x 1.4 mm |
Drilled hole diameter with tolerance | 1.8(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.551MJ | Weight | 26.5g |
Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4050821252016 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 30A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 30A | Connection technology | CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.5 … 6 mm2 / 20 … 10 AWG |
Fine-stranded conductor | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6 mm2 | Strip length | 11 … 12 mm / 0.43 … 0.47 inches |
Conductor connection direction to PCB | 30° | Number of poles | 4 |
Specifications may be subject to change without notice
