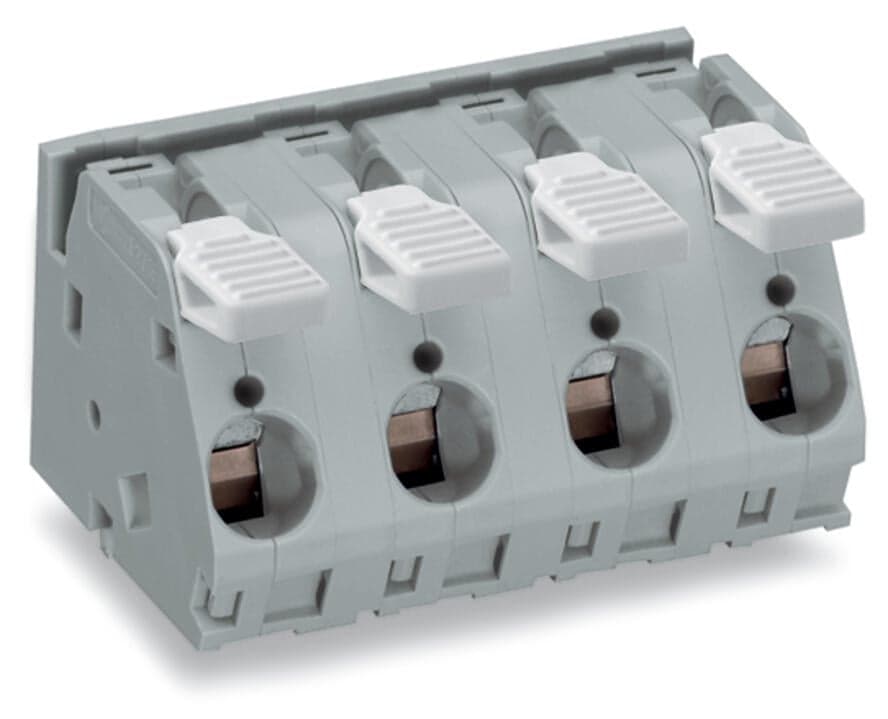

Product Model
2716-254
Selling Points
- 1High-current terminal strips with lever-actuated CAGE CLAMP for secure connections.
- 2Tool-free opening and closing fingers for easy handling and maintenance.
- 3Compatible with multi-core cables, allowing simultaneous clamping of several units.
- 4Four solder pins per contact point for enhanced mechanical stability.
- 5600V UL rating for 15mm pin spacing, ensuring safe high-voltage applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 4 |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Pin spacing | 15 mm / 0.591 inches | Width | 55 mm / 2.165 inches |
Height | 33.3 mm / 1.311 inches | Height from the surface | 28.8 mm / 1.134 inches |
Depth | 35 mm / 1.378 inches | Solder pin length | 4.5mm |
Solder pin dimensions | 0.95 x 1.2 mm | Drilled hole diameter with tolerance | 1.6(+0.1)mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 4 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.986MJ |
Weight | 49.5g | Limit temperature range | -60 … +105 °C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 16 pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4045454739508 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 65A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 65A |
Connection technology | CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 1.5 … 16 mm2 / 16 … 6 AWG | Fine-stranded conductor | 1.5 … 16 mm2 / 16 … 6 AWG |
Fine-stranded conductor; with insulated ferrule | 1.5 … 10 mm2 | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 10 mm2 |
Strip length | 12 … 13 mm / 0.47 … 0.51 inches | Conductor connection direction to PCB | 30° |
Number of poles | 4 |
Specifications may be subject to change without notice
