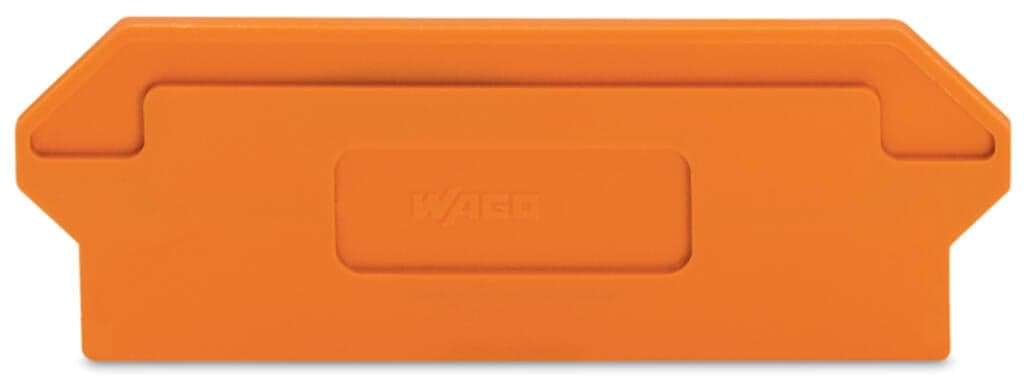

Product Model
279-327
Selling Points
- 1Durable construction with 2 mm thickness.
- 2Oversized design for secure fitment.
- 3Easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 4Orange color for clear visibility.
- 5Available in packs of 100 pieces (25 pieces per unit).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 67.8?mm?/ 2.669?inches |
Depth | 25.5?mm?/ 1.004?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.076MJ | Weight | 2.5g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332295031 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
