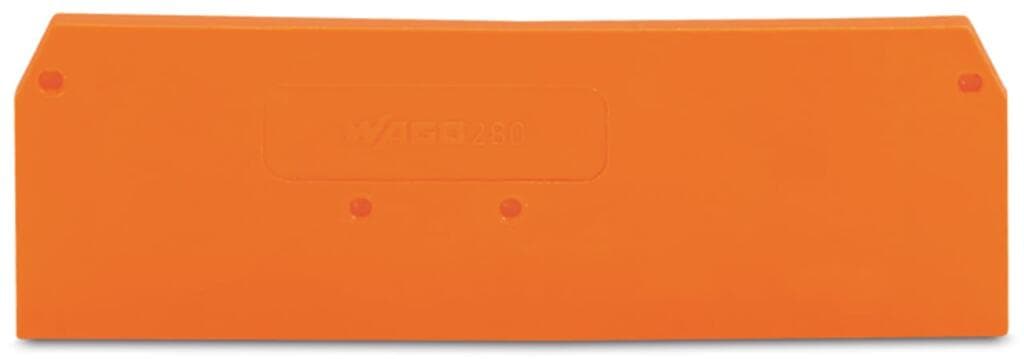

Product Model
280-315
Selling Points
- 1Orange Color: Enhance visibility with the vibrant orange color.
- 22.5mm Thickness: Durable and robust construction for reliable performance.
- 3V0 Flammability Class: Meets high safety standards with a V0 rating per UL94.
- 4Continuous Operating Temperature Range: Operate from -60°C to +105°C for versatile use.
- 5RoHS Compliant: Compliant with RoHS regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 75?mm?/ 2.953?inches |
Depth | 28?mm?/ 1.102?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.116MJ | Weight | 3.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332270458 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
