Product Model
280-335
Selling Points

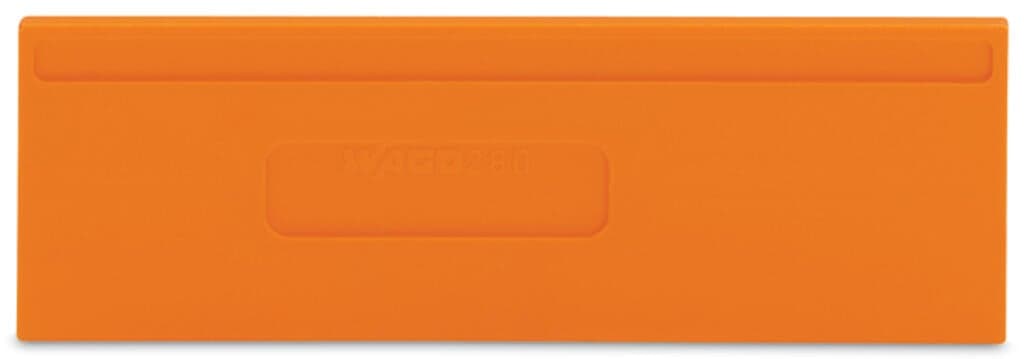

- 1The WAGO Separator Plate 280-335 ensures reliable isolation between electrical components.
- 2Made from 2 mm thick material, providing long-lasting performance in demanding environments.
- 3Suitable for a wide range of electrical systems, including rail-mounted terminal blocks and automation setups.
- 4Simple to integrate into existing electrical configurations, minimizing setup time and effort.
- 5Constructed from robust materials, ensuring consistent performance and safety in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 75?mm?/ 2.953?inches |
Depth | 26.4?mm?/ 1.039?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.088MJ | Weight | 3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332270465 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
