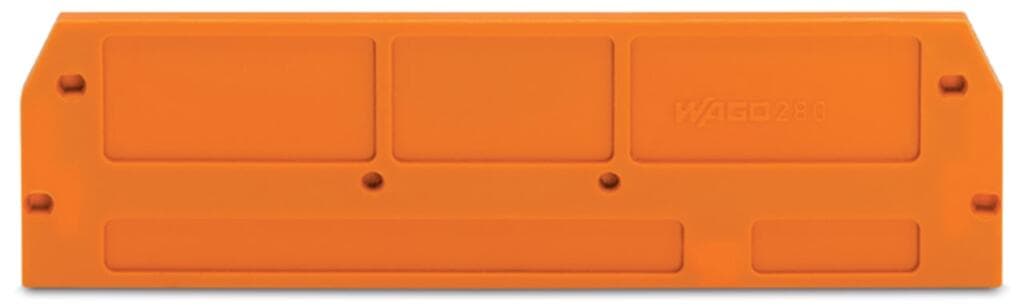

Product Model
280-373
Selling Points
- 1Compact Design: 2.5 mm thick for space-saving installations.
- 2High Fire Resistance: Meets V0 flammability class per UL94.
- 3Durable Material: Made from robust, orange-colored material.
- 4Easy Installation: Designed for end and intermediate plate applications.
- 5Versatile Usage: Ideal for rail-mounted terminal block needs in various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 88.9?mm?/ 3.5?inches |
Depth | 26?mm?/ 1.024?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.12MJ | Weight | 3.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332255431 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
