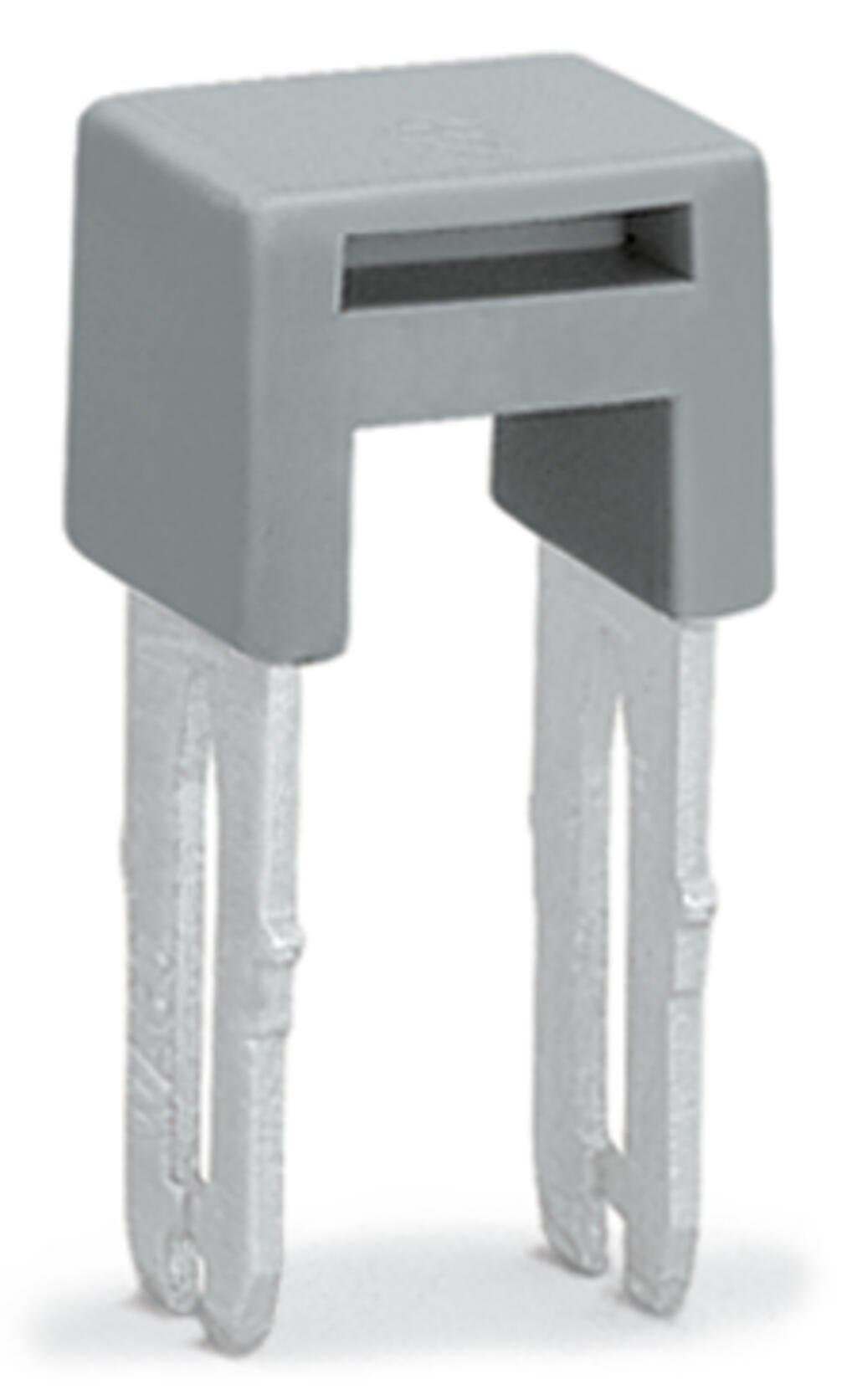

Product Model
280-409
Selling Points
- 124A Current Rating: Handles high currents efficiently.
- 2Insulated Design: Ensures safe and reliable connections.
- 3Gray Color: Easy to identify in industrial settings.
- 4Compact Size: Measures 8 mm in depth and 10 mm in width.
- 5Versatile Use: Compatible with rail mount terminal blocks and side-entry through conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Height | 8?mm?/ 0.315?inches |
Depth | 21.7 mm / 0.854 inches | Jumper assignment | 1-3 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.012MJ | Weight | 1.7g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918293792 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A |
Specifications may be subject to change without notice
