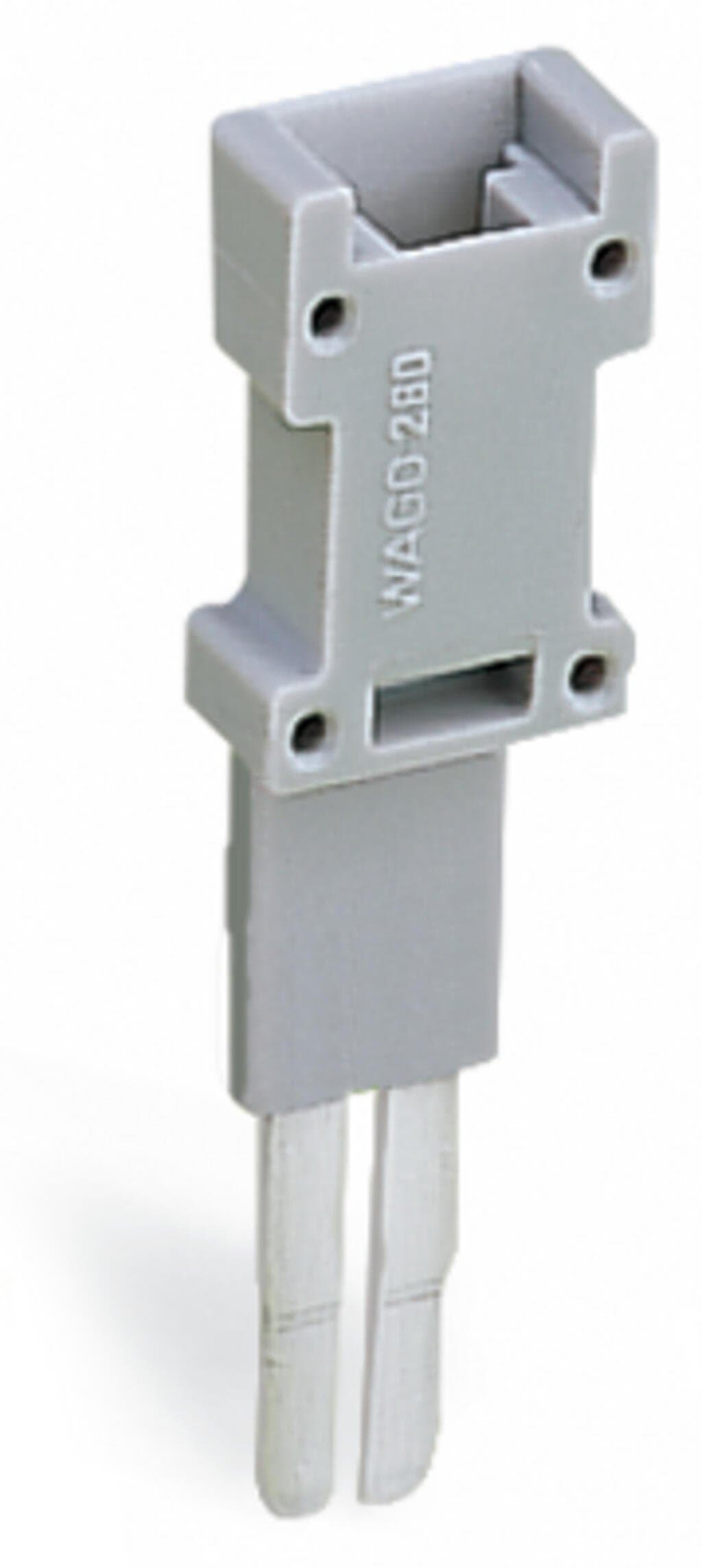

Product Model
280-418
Selling Points
- 1Gray Color and 5mm Width: Compact design fits perfectly in rail-mounted terminal blocks.
- 2400V Test Voltage: Ensures high reliability in electrical testing applications.
- 36A Test Current: Suitable for a wide range of electrical testing needs.
- 4Modular Design: Easy to install and use with jumper slots in the current bar.
- 5Rohs Compliant: Meets international safety standards for electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | These test plugs are not suitable for Ex e applications. | Width | 5?mm?/ 0.197?inches |
Module width | 5?mm?/ 0.197?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.166MJ |
Weight | 1.8g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918276313 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Test voltage | 400V |
Test current | 6A |
Specifications may be subject to change without notice
