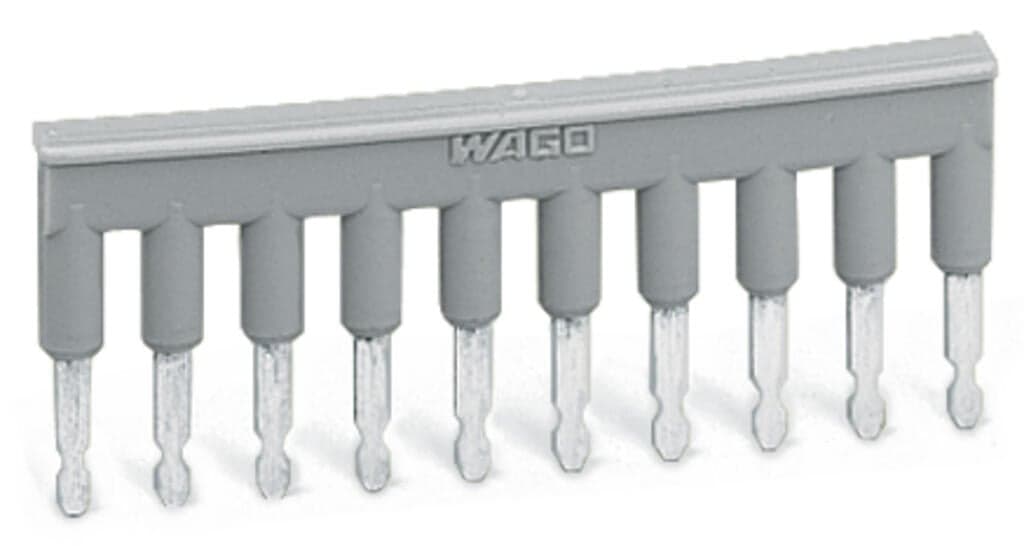

Product Model
280-490
Selling Points
- 1Designed for consistent and secure connections in rail-mounted terminal blocks.
- 2Features a compact, insulated design for effortless jumper bar connections.
- 3Suitable for a variety of applications, including industrial and electrical systems.
- 4Built with high-quality materials to withstand demanding environments.
- 5Easy to install and use, reducing setup time and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 50?mm?/ 1.969?inches | Height | 4?mm?/ 0.157?inches |
Depth | 19.2 mm / 0.756 inches | Jumper assignment | 1-2-3-4-5-6-7-8-9-10 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Fire load | 0.032MJ |
Weight | 5g | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918846097 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A |
Specifications may be subject to change without notice
