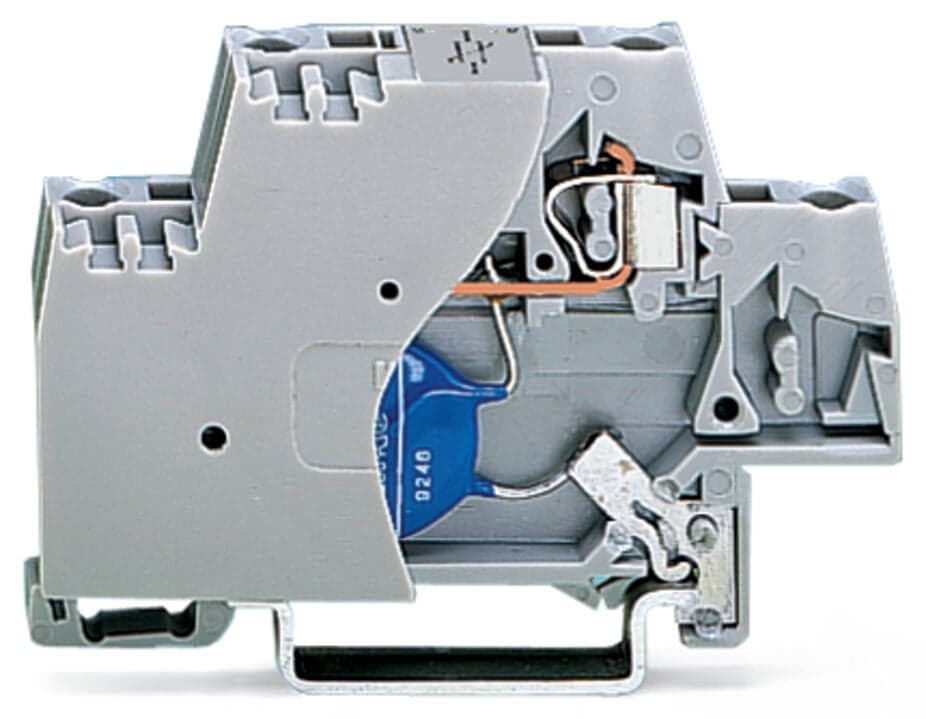

Product Model
280-502/281-586
Selling Points
- 1Protects against overvoltage with integrated varistor.
- 2Slim, space-saving design for efficient installation.
- 3Direct connection to DIN rail for easy mounting.
- 4Prevents expensive, unplanned downtime with reliable protection.
- 5Available in a pack of 50 pieces for bulk ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | AC?24?V | Maximum continuous voltage | AC?30?V |
Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 300?A |
Discharge current (max.) | 1kA | Protection level (8/20?μs) | ≤?AC 93?V |
Capacitance | ≤?3.5?nF | Connections (number) | 2 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 10?mm?/ 0.394?inches | Height | 64 mm / 2.52 inches |
Depth from upper-edge of DIN-rail | 39.5 mm / 1.555 inches | Design | with end plate; with direct connection to DIN-rail |
Mounting type | DIN-35 rail | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.364MJ |
Weight | 13.1g | Processing temperature | -35 … +85?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821860150 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
