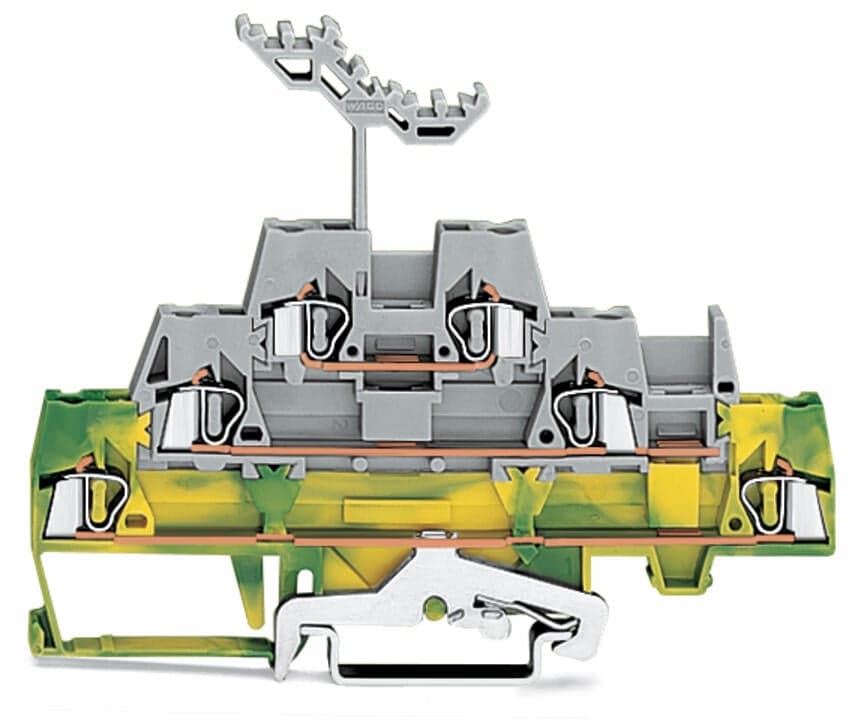

Product Model
280-557
Selling Points
- 1High-Current Capability: Handles up to 100kA short circuit current rating.
- 2Durable Design: Built with robust materials for long-lasting performance.
- 3Easy Installation: Quick and tool-free push-in termination for solid conductors.
- 4Versatile Use: Suitable for a wide range of electrical applications, including power generation and distribution.
- 5Compliance Assurance: Meets UL508A standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 103?mm?/ 4.055?inches | Depth from upper-edge of DIN-rail | 76.5?mm?/ 3.012?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow/gray/gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.305MJ | Weight | 21.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821293750 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | d358ba2c-1b56-4409-afe1-f06bc403c728 | SCIP notification number (Belgium) | cce58ae3-49e6-4b42-be15-063e2f1cef1d |
SCIP notification number (Bulgaria) | 33f892ab-c46e-49d8-8a1f-9fbca5dbb47f | SCIP notification number (Czech Republic) | 6025b5be-d225-4198-aa28-e8eeafdf9e6a |
SCIP notification number (Denmark) | 4a16a667-e566-4915-a762-4c045b7490c6 | SCIP notification number (Finland) | fbaa4f9c-8a3b-4d53-9e2d-f7813343f940 |
SCIP notification number (France) | 49e33641-bdd4-4543-b4f8-d5a9b3cfde89 | SCIP notification number (Germany) | 9d090dc0-1041-4b1b-be06-d2ab59bec90b |
SCIP notification number (Hungary) | ddd49712-cda8-43ba-9abd-0583d2d434b3 | SCIP notification number (Italy) | 60c9ca20-cbe4-40b1-9dd7-edc3fd53d772 |
SCIP notification number (Netherlands) | 3838e0b1-13c9-41c9-835a-9371013452da | SCIP notification number (Poland) | 1ae5b8f4-b97c-4736-876a-c72c2bb59b4f |
SCIP notification number (Romania) | b5a1e27a-f2ce-4b07-8821-00abd4a0ca23 | SCIP notification number (Sweden) | 5cd2b754-c7a6-461a-9e6b-634b858ead0d |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.064W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
