Product Model

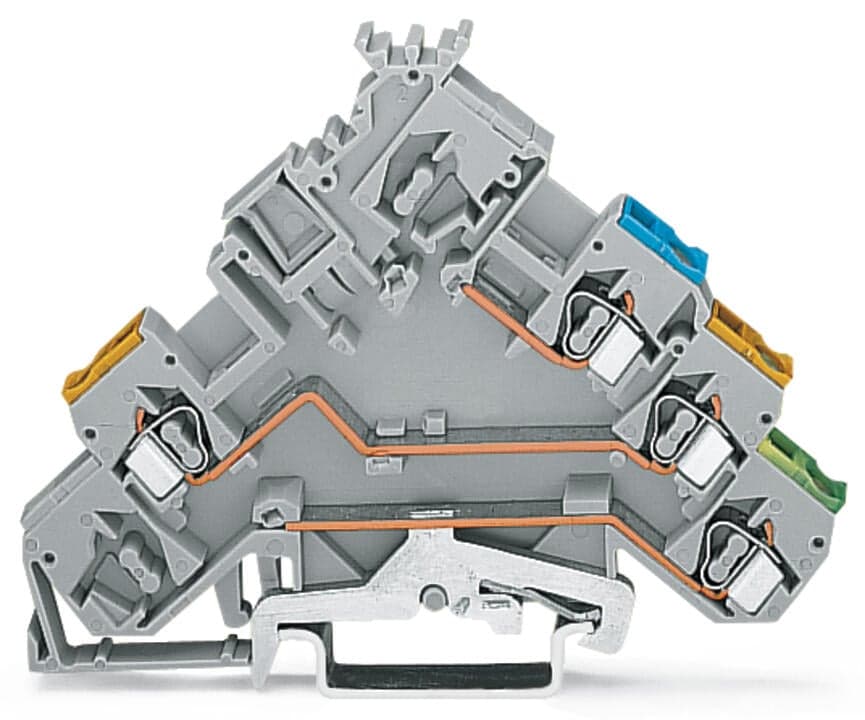

280-572/281-411
Selling Points
- 1Efficient Connectivity: CAGE CLAMP technology ensures secure and reliable connections.
- 2Versatile Design: Suitable for various applications with ground contact and colored conductor entries.
- 3High Current Rating: Rated for 20 A, ideal for demanding electrical systems.
- 4Durable Construction: Made from high-quality polyamide (PA66) insulation material.
- 5Easy Installation: Front-entry wiring design simplifies installation and maintenance processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 3 |
Number of levels | 4 | Width | 5?mm?/ 0.197?inches |
Height | 90.5?mm?/ 3.563?inches | Depth from upper-edge of DIN-rail | 63.5?mm?/ 2.5?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.354MJ | Weight | 17.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454194598 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | a2c1351b-dde0-44b4-b9a2-51a74d18d136 |
SCIP notification number (Belgium) | ee91121f-4814-4e80-a31b-363c64f6d377 | SCIP notification number (Bulgaria) | e5f84600-b138-4155-9b84-970cb6157097 |
SCIP notification number (Czech Republic) | bfdd6b14-f373-4e62-a431-7fdb44f7b95a | SCIP notification number (Denmark) | f4a2f773-7502-4015-bcc9-2273465b8c0d |
SCIP notification number (Finland) | b2ea9f35-319b-4df7-87da-b2209790c18d | SCIP notification number (France) | b64f7a9b-eb8f-4679-a906-e31543f45fd7 |
SCIP notification number (Germany) | 7fff114a-5140-48d0-965b-c21c5d787475 | SCIP notification number (Hungary) | ce93cd6d-c650-4beb-bee7-06ab9606a8ba |
SCIP notification number (Italy) | 95086229-5bfd-4e03-98a6-aa1a67d8ec1d | SCIP notification number (Netherlands) | ed63bfdf-deec-4aee-a968-82584f68270d |
SCIP notification number (Poland) | 3eb59026-5f54-4373-8f07-7c256691e8b0 | SCIP notification number (Romania) | 0c5d6225-4c69-45ad-a76a-797a466ed6ea |
SCIP notification number (Sweden) | ff4d05ad-16d8-476b-9130-b5904014ad04 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated voltage (III/3) 2 | 250V |
Rated surge voltage (III/3) 2 | 4kV | Rated current 2 | 20A |
Power loss, per pole (potential) | 0.532W | Rated current I<sub>N</sub> for specified power loss | 20A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
