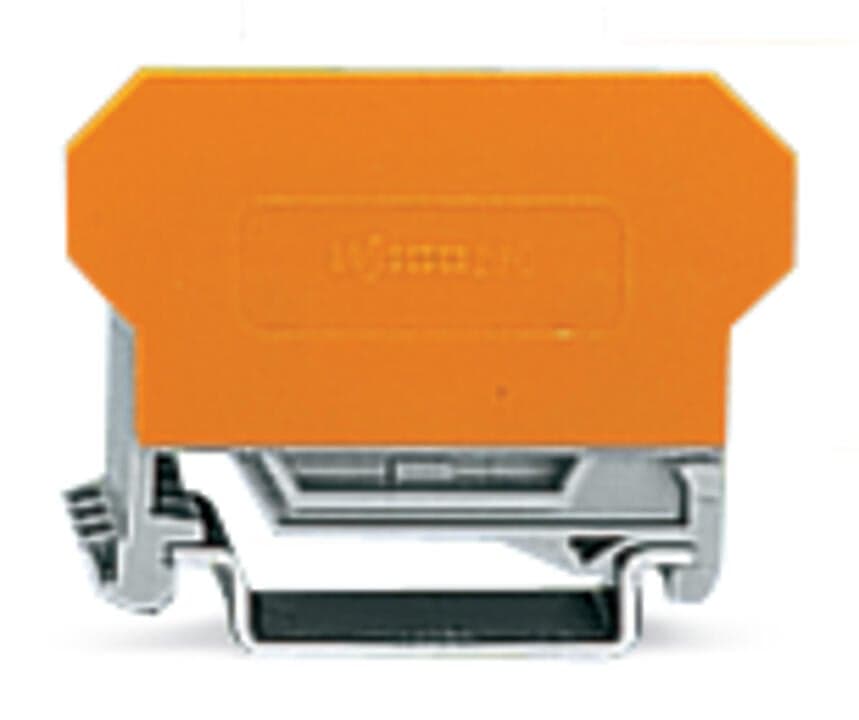

Product Model
280-638
Selling Points
- 1DIN Rail Mounting: Mounts easily on DIN rail for compact industrial applications.
- 2CAGE CLAMP Connection: Secure wire connection with CAGE CLAMP technology.
- 3High Voltage Rating: Rated for 400V with a nominal current of 10A.
- 4Versatile Wire Size: Accommodates wire sizes from 28AWG to 14AWG.
- 5RoHS Compliant: Meets RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated continuous current | 10A | Rated voltage | 400V |
Rated surge voltage | 6kV | Pollution degree | 3 |
Total number of potentials | 2 | Number of connection types | 2 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Width | 22?mm?/ 0.866?inches |
Height | 50?mm?/ 1.969?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Mounting type | DIN-35 rail | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.647MJ |
Weight | 20.9g | Processing temperature | -35 … +85?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918538794 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
