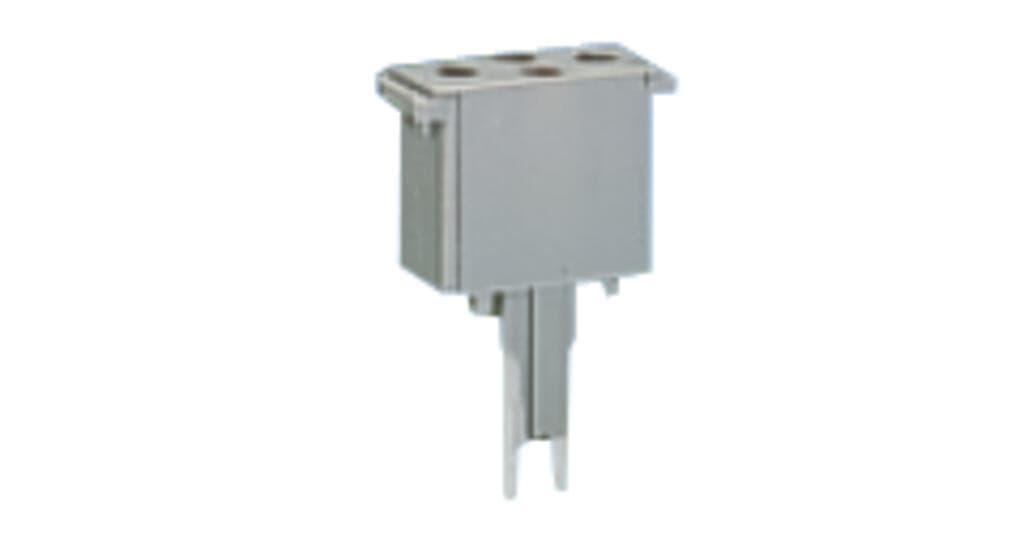

Product Model
280-802
Selling Points
- 1Designed for plug-in mounting.
- 2Rated for 6A current.
- 3Available in gray color.
- 4Equivalent to model 280802.
- 5Ideal for electrical and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Plug inside dimensions: W/H/L (8.2/15/15) mm | Rated continuous current | 6A |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Number of poles | 2 |
Wiring direction | Front-entry wiring | Width | 10?mm?/ 0.394?inches |
Housing design | Plug for carrier terminal blocks | Mounting type | Pluggable module for carrier terminal block |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.127MJ | Weight | 3g |
Processing temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-18-27-02 |
ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918270410 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
