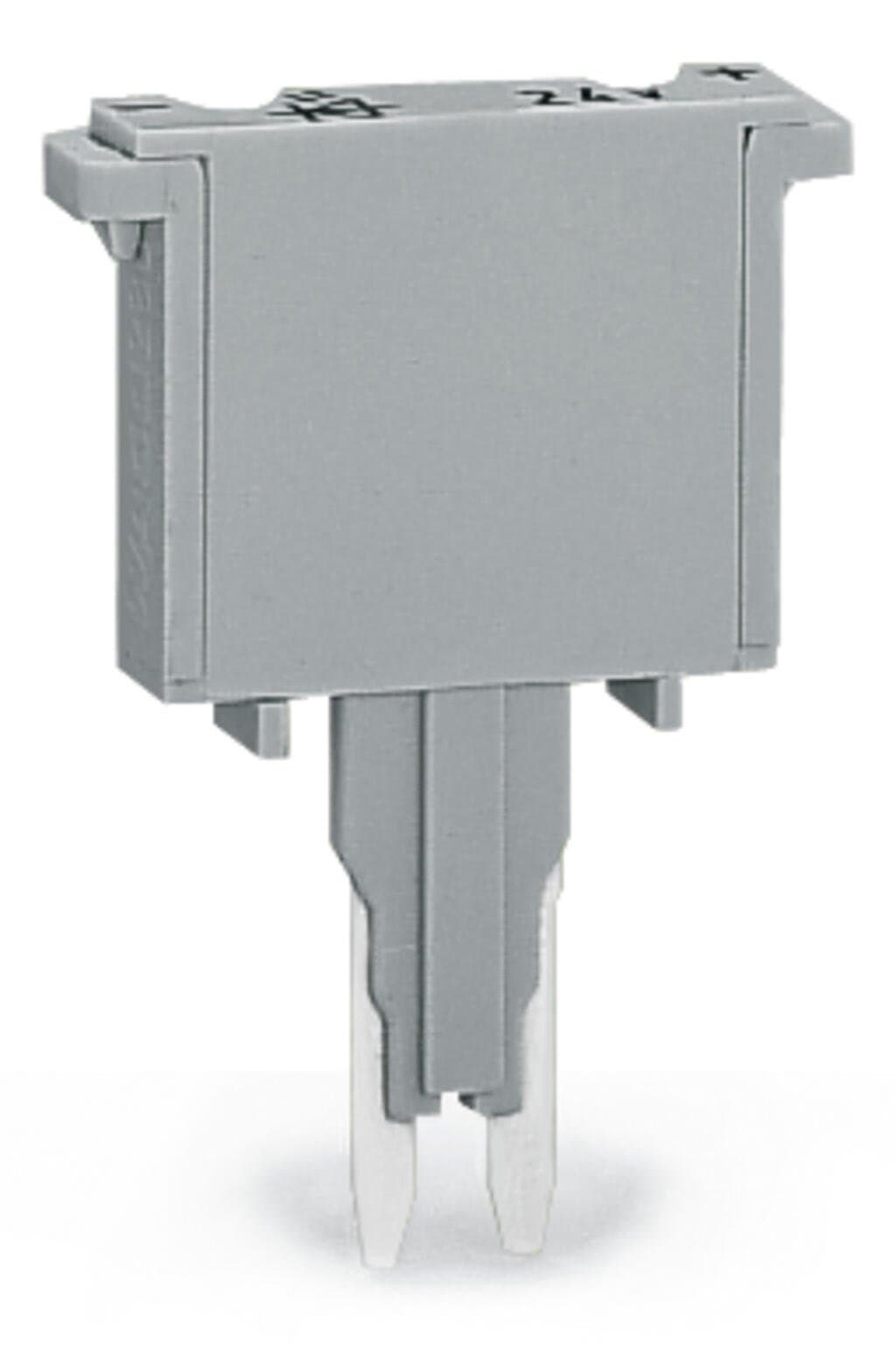

Product Model
280-854
Selling Points
- 1Reliable electrical protection with a nominal current of 5A.
- 2Compatible with series 280 WAGO terminal accessories.
- 3Grey color for easy identification in industrial settings.
- 4Includes an indicator lamp for visual status monitoring.
- 5Soldered miniature fuse for secure and efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5?mm?/ 0.197?inches | Marking level | without marking level |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.099MJ |
Weight | 2.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454196431 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
Rated voltage (III / 3) | 125V | Rated current | 5A |
Operation status indicator | None | Ratings (note) | Electrical ratings are given by the fuse. |
Fuse type | Miniature fuse; 1 A FF |
Specifications may be subject to change without notice
