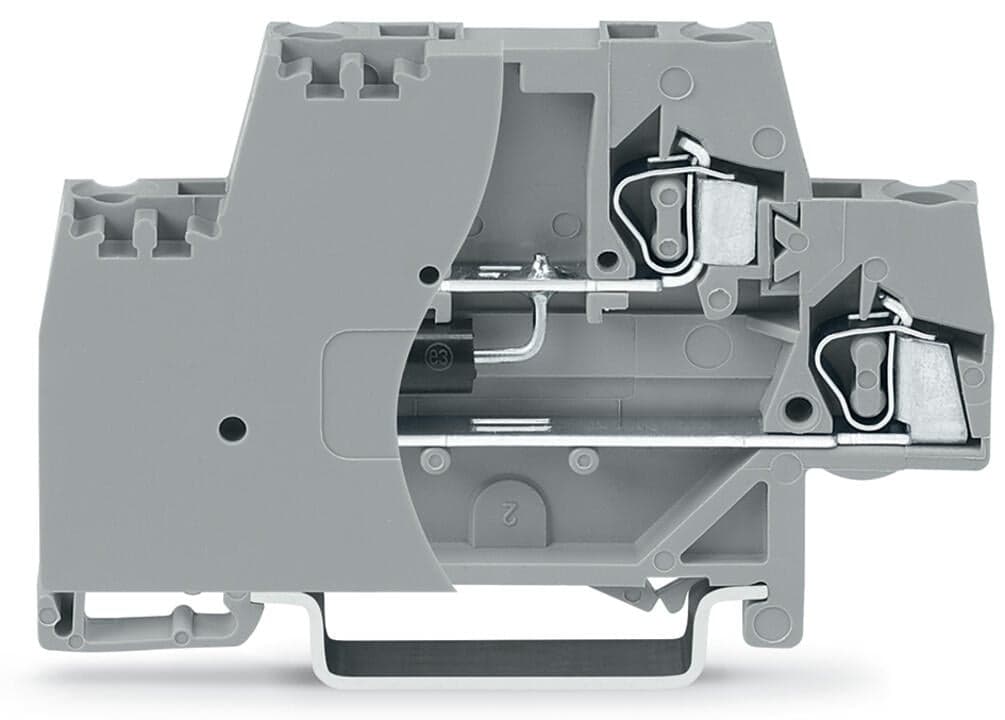

Product Model
280-944/281-594
Selling Points
- 1DIN-Rail Mounting Compatibility: Designed for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 2Overvoltage Protection: Equipped with a 1.5KE-C TVS diode for reliable overvoltage protection.
- 3Compact and Durable: Built with a robust end plate and CAGE CLAMP technology for secure connections.
- 4Versatile Connectivity: Supports 4-position feed-through connections for various wire gauges (10-20 AWG).
- 5High-Quality Construction: Manufactured by WAGO, a trusted brand in electrical connectivity solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | AC?115?V | Maximum continuous voltage | AC?133?V |
Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 26?A |
Protection level (8/20?μs) | ≤?AC 388?V | Capacitance | ≤?630?pF |
Connections (number) | 4 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 10?mm?/ 0.394?inches |
Height | 64 mm / 2.52 inches | Depth from upper-edge of DIN-rail | 39.5 mm / 1.555 inches |
Design | with end plate | Mounting type | DIN-35 rail |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.362MJ | Weight | 14g |
Processing temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821514947 | Customs tariff number | 85369010000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Bulgaria) | 1fd7fac4-2d27-49d6-b7a7-ea0372cfde0f | SCIP notification number (Czech Republic) | 67243e70-35ed-4c90-964e-3b8c23dbecf3 |
Specifications may be subject to change without notice
