Product Model
281-326
Selling Points

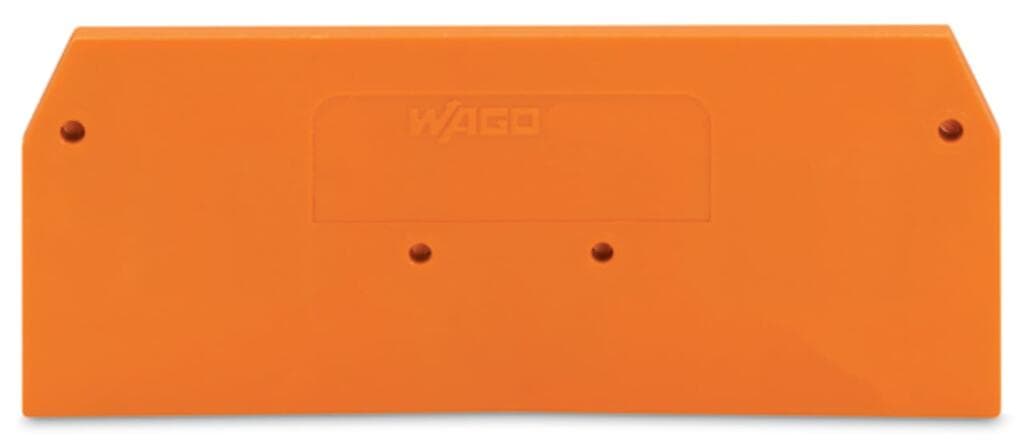

- 12.5mm thick orange end and intermediate plate.
- 2Suitable for rail-mounted terminal blocks.
- 3Ideal for through/ground conductor/shield and Ex terminal blocks.
- 4Available in 100-piece packs (PU: 100).
- 5Competitive pricing starting from $28.53.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 73.2?mm?/ 2.882?inches |
Depth | 27.2?mm?/ 1.071?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.126MJ | Weight | 4.2g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332295543 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
