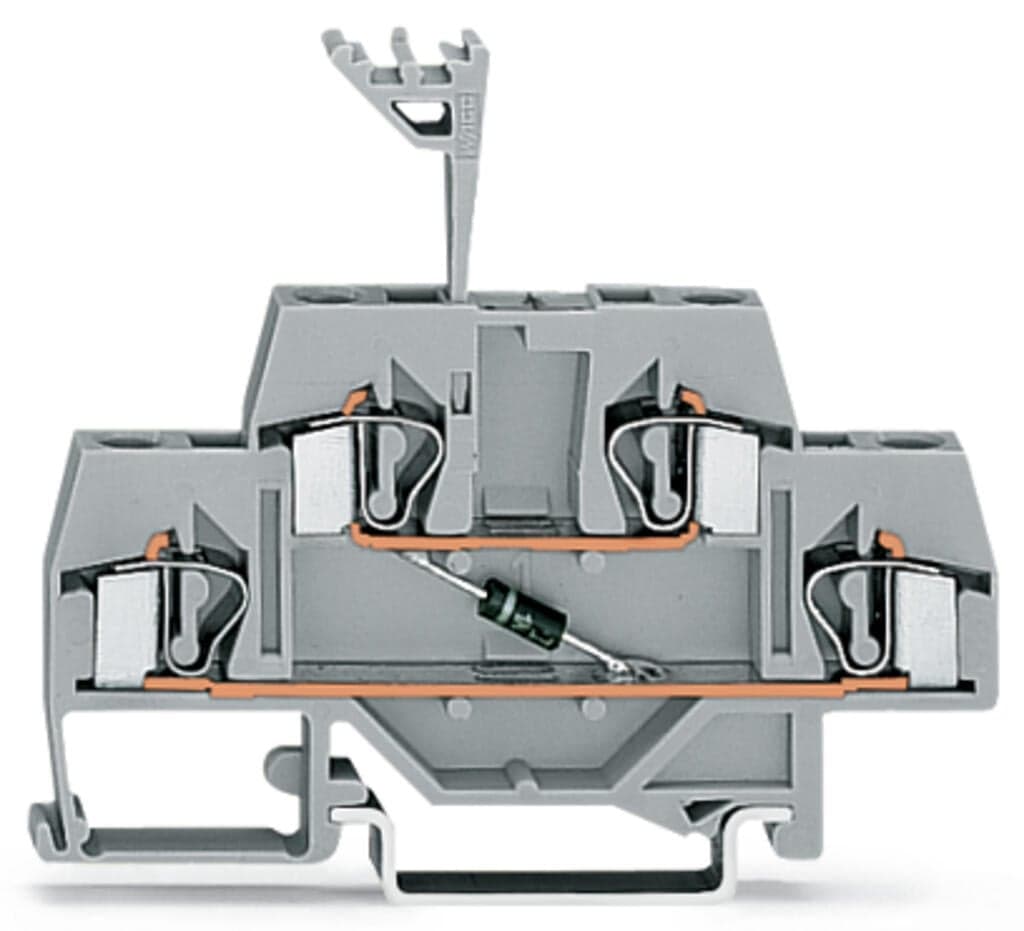

Product Model
281-633/281-411
Selling Points
- 1Double-deck design for increased connectivity.
- 2Equipped with diode 1N4007 for added protection.
- 3Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 4CAGE CLAMP connections ensure secure conductor insertion.
- 5Rated for 0.5A current and 1,000V reverse voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 6?mm?/ 0.236?inches |
Height | 73.5?mm?/ 2.894?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.243MJ | Weight | 13.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454197230 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | afff3896-9073-41a9-9866-0e40b15106de |
SCIP notification number (Belgium) | 69dee347-0f5b-448a-98f7-24f0f9a83430 | SCIP notification number (Bulgaria) | f0af08a3-31ec-4d7a-8db8-349d1259b295 |
SCIP notification number (Czech Republic) | b19a07a6-a548-4e02-af09-acdd60571b11 | SCIP notification number (Denmark) | 6f638b10-4515-4069-9f81-4435afea77c5 |
SCIP notification number (Finland) | 18ef40c7-b93b-467c-b175-e89354efcf5c | SCIP notification number (France) | 893719e0-0d93-4191-b1e3-cb880a3bb127 |
SCIP notification number (Germany) | d1494440-1982-4f4f-bc38-76d715ef96e4 | SCIP notification number (Hungary) | 250d652a-3c37-4e4c-a6ea-4388ba382b3d |
SCIP notification number (Italy) | 79023886-2940-4322-92a4-7688c11aa61b | SCIP notification number (Netherlands) | fa8842dc-0788-4898-9db1-35a40fe6603d |
SCIP notification number (Poland) | 46278f57-766a-43d3-97ec-13dbcf6357d1 | SCIP notification number (Romania) | 890cc65d-8348-4e47-9a00-6741c18dabc1 |
SCIP notification number (Sweden) | cce3f02f-2e71-43bd-a1b2-ba21890f92e0 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
