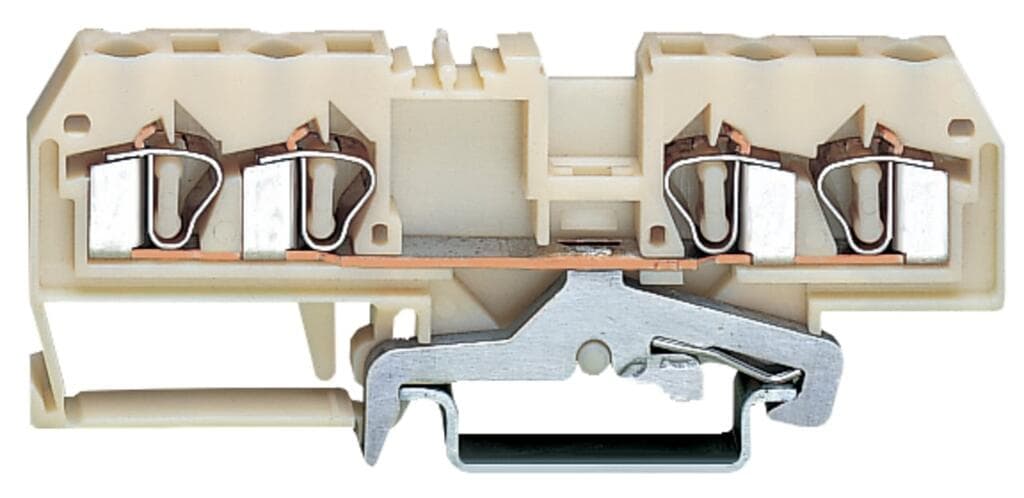

Product Model
281-658
Selling Points
- 1Automated Clamping: The WAGO 281-658 features an automatic clamping mechanism that ensures secure connections without wire damage.
- 2Wide Wire Range: Accommodates wire sizes from 14 to 12 AWG, making it versatile for various electrical applications.
- 3High Short Circuit Current Rating: Rated at 100 kA, providing robust protection against short circuits.
- 4Durable Construction: Built with high-quality materials for long-lasting performance in demanding environments.
- 5Easy Installation: Simplified installation process with minimal wire preparation required, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 29?mm?/ 1.142?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.189MJ | Weight | 16.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918512022 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 2247f69b-4bd7-4f6c-b345-6f3c844a98b1 |
SCIP notification number (Belgium) | b351ad1d-e600-45fa-973c-ecfcd6a6376f | SCIP notification number (Bulgaria) | 6a13c3f7-ca4a-4d84-9615-44073cbd0ed8 |
SCIP notification number (Czech Republic) | 4e33d886-dc36-4083-a647-22991a2a5c68 | SCIP notification number (Denmark) | 0a9b637d-0233-48ee-b3f5-6e9c13e62ad8 |
SCIP notification number (Finland) | 72d4e510-ed88-463e-abbe-b0773ae3b045 | SCIP notification number (France) | d419ba31-23f6-49b8-b76c-fadc7c4a5a40 |
SCIP notification number (Germany) | 32a58ac3-4bb2-4b1f-8d22-200d4ed6b568 | SCIP notification number (Hungary) | 2a4f17f2-1026-4dae-8b7c-151acb14bac5 |
SCIP notification number (Italy) | 5dcbec26-d8ed-440a-b83c-0721ab90e62b | SCIP notification number (Netherlands) | 195019c5-651b-4986-a48a-5751e5e39e82 |
SCIP notification number (Poland) | c2ac403b-3db2-48d9-96ee-18f9e6fd14a2 | SCIP notification number (Romania) | bd36c6cf-26d3-4dd8-8249-c3c3b0f8a629 |
SCIP notification number (Sweden) | 1db22a95-1b86-4d4c-baa2-8f1fd38557df | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
