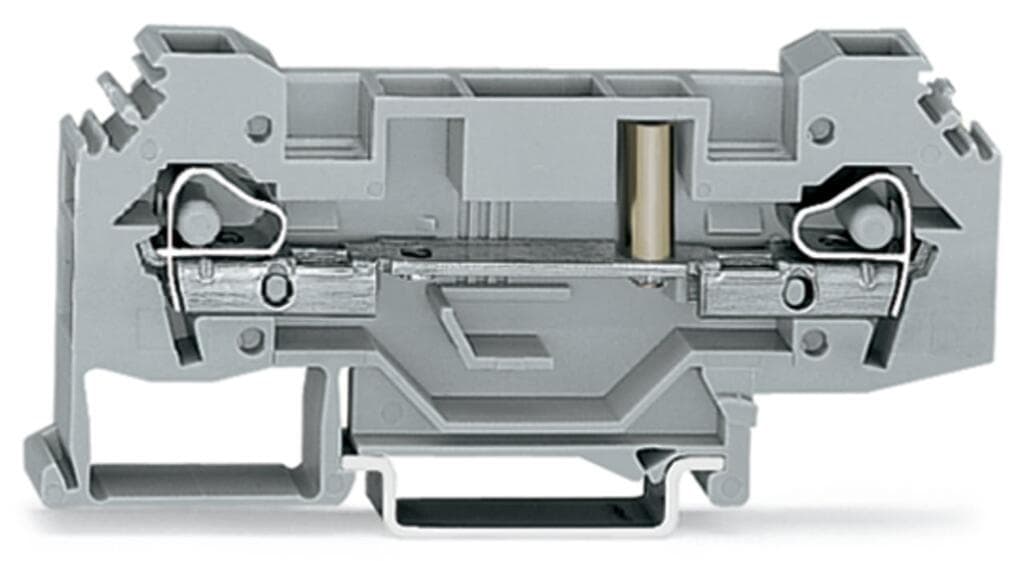

Product Model
282-133
Selling Points
- 1High-quality connectors ensure secure and durable connections.
- 2Easy installation with minimal tools required for quick setup.
- 3Durable design withstands harsh industrial environments.
- 4Compatible with a wide range of industrial devices and systems.
- 5Reduces downtime with reliable and consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 37?mm?/ 1.457?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.417MJ | Weight | 19.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918673365 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | d4af70d0-784a-4098-8670-39cbe18b2c3a |
SCIP notification number (Belgium) | 74b60eaf-2a7f-437b-a08c-1782c4bce77e | SCIP notification number (Bulgaria) | f920208e-22a9-43f6-9253-71aca1b3964e |
SCIP notification number (Czech Republic) | a04a4a96-dd3e-48e2-a6b3-fe026283b299 | SCIP notification number (Denmark) | 7c6fb4c4-409c-4314-8a36-6cad041b2b78 |
SCIP notification number (Finland) | 1f42ab15-df98-4070-bf63-5487460272f1 | SCIP notification number (France) | 2278e7a7-eed6-48bd-8162-6bfe665d9c4f |
SCIP notification number (Germany) | f896ed2c-f8e5-4eda-bb2a-d3b5946a3988 | SCIP notification number (Hungary) | 98c2da3b-de9b-4465-aebc-8498c1478bca |
SCIP notification number (Italy) | 3c0fb749-b00c-404f-9ae5-3a7e9043dccc | SCIP notification number (Netherlands) | 201a63a6-c5ff-4be6-88f0-7989f56572b8 |
SCIP notification number (Poland) | b356abfe-4c05-4d9f-9423-4d2d31a2ee6c | SCIP notification number (Romania) | 2b23d83c-b73a-432f-83a3-1a0e41b032f6 |
SCIP notification number (Sweden) | d4f6b4a3-e3ea-4e13-8a83-8be055cc434f | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
