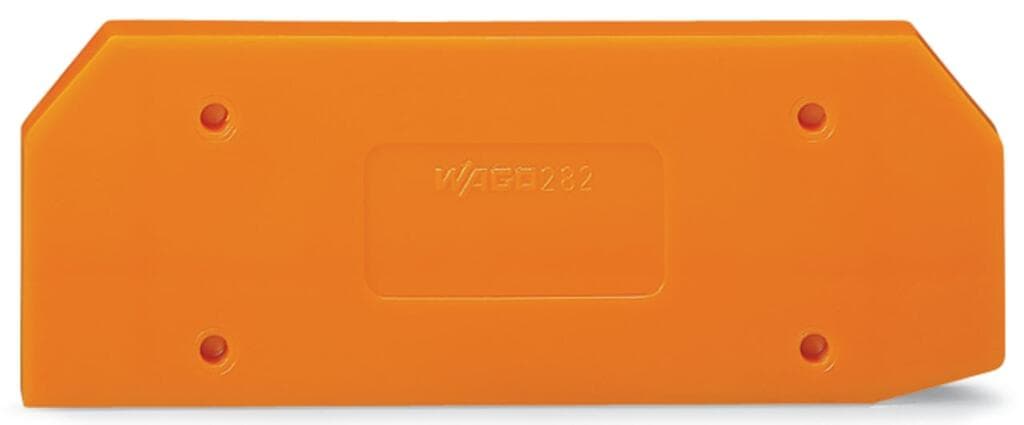

Product Model
282-315
Selling Points
- 14 mm thick, high-quality material for long-lasting performance.
- 2Designed for WAGO 282 Series DIN Rail Terminal Blocks, perfect for various industrial applications.
- 3Operates continuously from -60°C to 105°C, ensuring reliability in diverse environments.
- 4Measures 37 mm in height and 85 mm in depth, ideal for space-efficient installations.
- 5Available in bulk quantities, offering significant cost savings for large-scale projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4?mm?/ 0.157?inches | Height | 85?mm?/ 3.346?inches |
Depth | 37?mm?/ 1.457?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.219MJ | Weight | 7.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332286138 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
