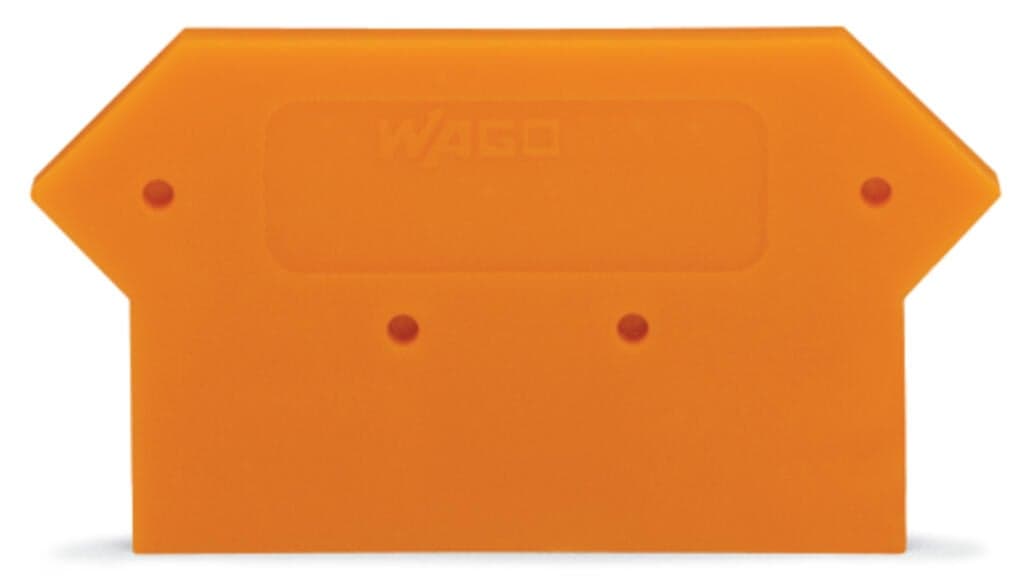

Product Model
282-318
Selling Points
- 1Made from high-quality Polyamide (PA) 66 for long-lasting performance.
- 2Measuring 62mm x 4mm x 31.5mm, ensuring accurate fitment in electrical installations.
- 3Withstands up to 105 degrees Celsius, suitable for demanding industrial environments.
- 4Available in a light gray color for easy identification and integration.
- 5Ideal for end and intermediate plate solutions in rail-mounted terminal blocks, enhancing electrical connectivity and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4?mm?/ 0.157?inches | Height | 62?mm?/ 2.441?inches |
Depth | 31.5?mm?/ 1.24?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.147MJ | Weight | 4.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332199360 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
