Product Model
282-326
Selling Points

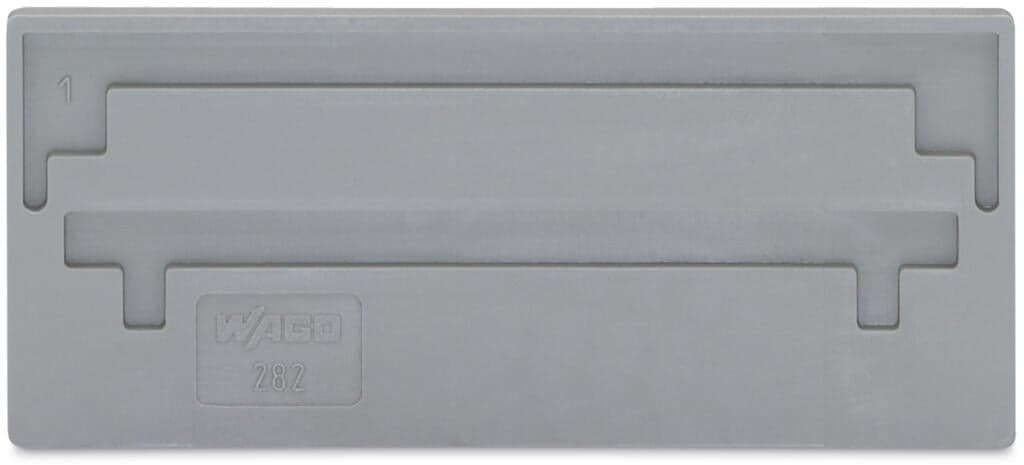

- 1The WAGO Separator Plate 282-326 is designed to provide seamless electrical connections in rail-mounted terminal blocks.
- 2Constructed from 2 mm thick, durable material for long-lasting performance and reliability.
- 3Simple to install, ensuring quick setup and minimal downtime in your electrical projects.
- 4Ensures secure separation between electrical components, reducing the risk of short circuits and electrical failures.
- 5Suitable for a wide range of applications, including industrial and commercial settings, where precise electrical separation is crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 73.2?mm?/ 2.882?inches |
Depth | 31?mm?/ 1.22?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.102MJ | Weight | 3.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332293129 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
