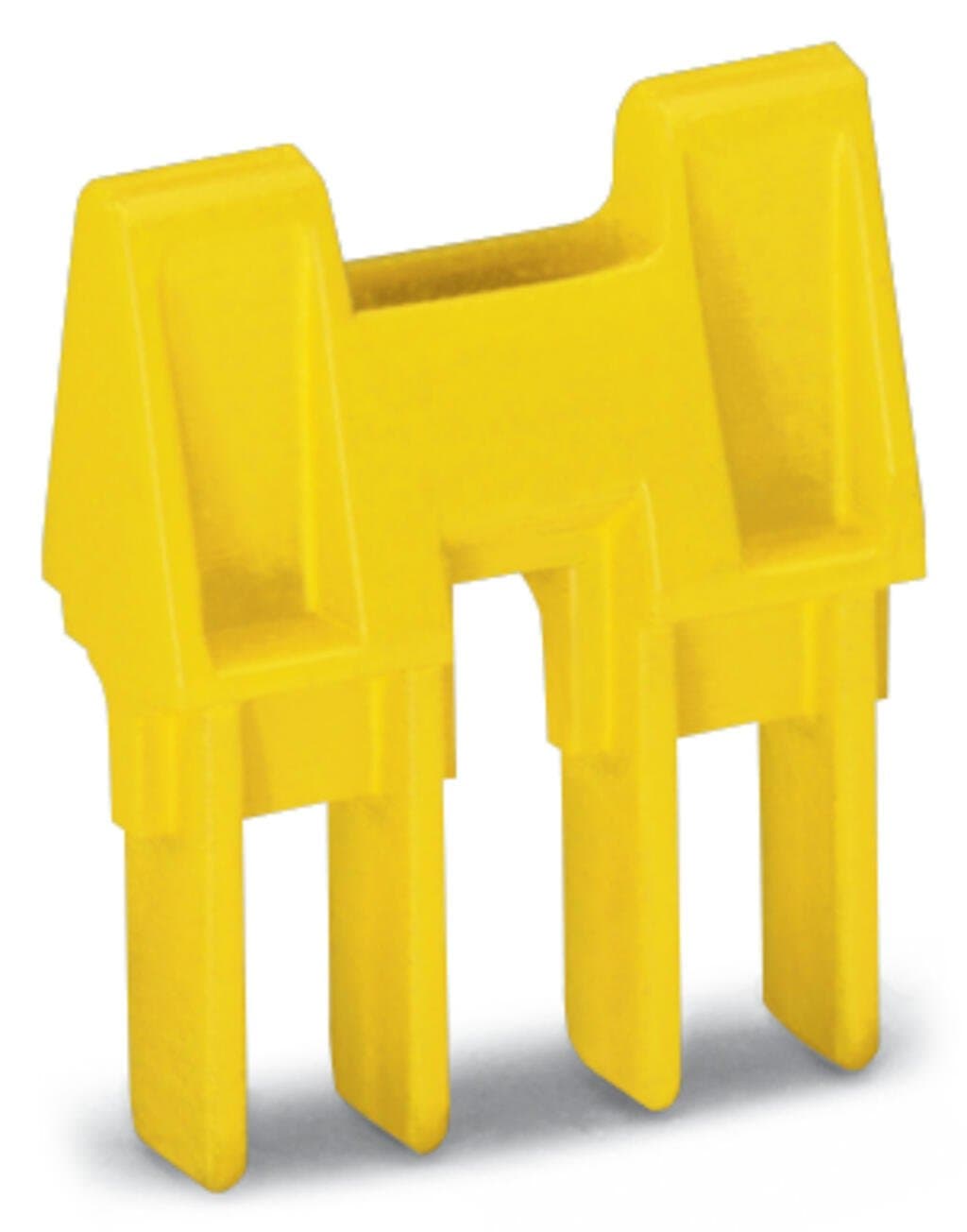

Product Model
282-372
Selling Points
- 1Mechanically locks multiple links in a 2-way configuration.
- 2Yellow color for easy identification.
- 3Weighs 0.500 g, compact and lightweight.
- 4UNSPSC code: 39121410, suitable for industrial use.
- 5Available in packs of 10 or 50 units for convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.013MJ |
Weight | 0.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4017332813051 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
