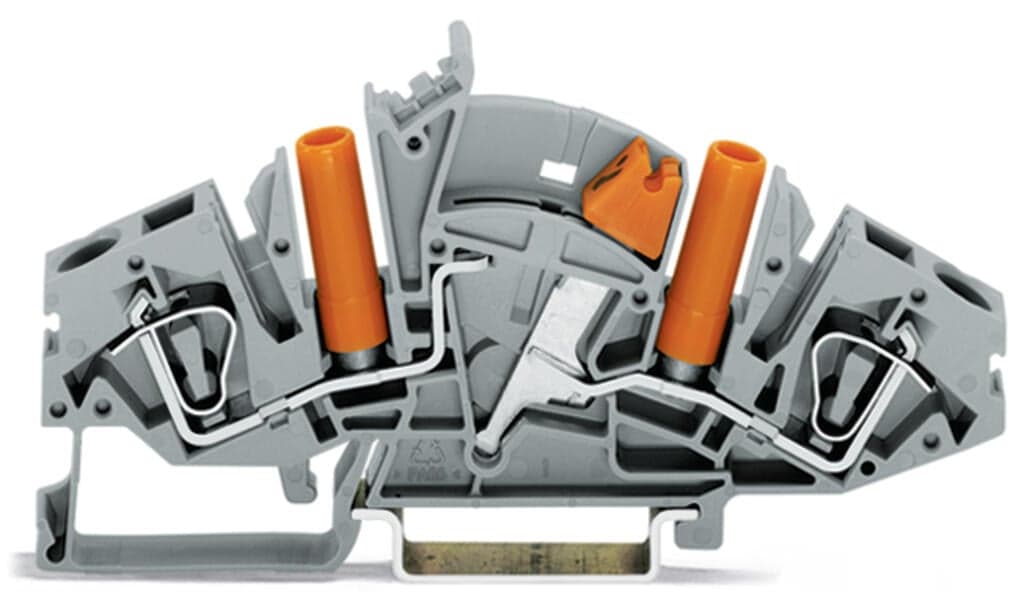

Product Model
282-821
Selling Points
- 1Secure 2-Conductor Connections: Ensures reliable electrical connections with minimal risk of loose connections.
- 2High Current Rating: Designed to handle up to 10A, making it suitable for demanding industrial applications.
- 3Durable Construction: Built with robust materials to withstand harsh environments and heavy usage.
- 4Easy Installation: Features a simple and efficient termination method, reducing installation time and effort.
- 5Compliant with Industry Standards: Meets or exceeds industry standards for safety and performance, ensuring compliance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 98?mm?/ 3.858?inches | Depth from upper-edge of DIN-rail | 46.5?mm?/ 1.831?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.349MJ | Weight | 24.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821227526 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 6fbb9a04-4645-4d85-bf79-426675484fa7 |
SCIP notification number (Belgium) | fd46549d-bd3c-421e-bb3d-e94f76d9fda1 | SCIP notification number (Bulgaria) | 69a6a508-9e54-43a9-bc73-d181c501bc25 |
SCIP notification number (Czech Republic) | cae9f513-66c9-42fc-88b3-6cc93e536f24 | SCIP notification number (Denmark) | 8cb11f6a-197d-4969-bc27-cd5a5483de33 |
SCIP notification number (Finland) | 89e4ea45-9142-42cf-98fd-255e6843f54f | SCIP notification number (France) | a1dc073a-0dbb-4a4f-a0db-7c5c94d9106b |
SCIP notification number (Germany) | 31d0e8d6-c170-49f2-b3e5-ffe1736f37b9 | SCIP notification number (Hungary) | ea57a924-8f18-45bd-a5d1-bc67c2bf0593 |
SCIP notification number (Italy) | eede8b96-df12-4ee2-9caf-9b2d47e01425 | SCIP notification number (Netherlands) | 06a48e1c-11d2-4756-83e5-e2c78a251b17 |
SCIP notification number (Poland) | 65c30c22-4db5-4aeb-8a93-22f088c88f52 | SCIP notification number (Romania) | dfa980e2-0470-4b02-89dc-2e65534a0149 |
SCIP notification number (Sweden) | bbbf5c1d-f468-4348-b3de-220a7efb0476 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 30A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
