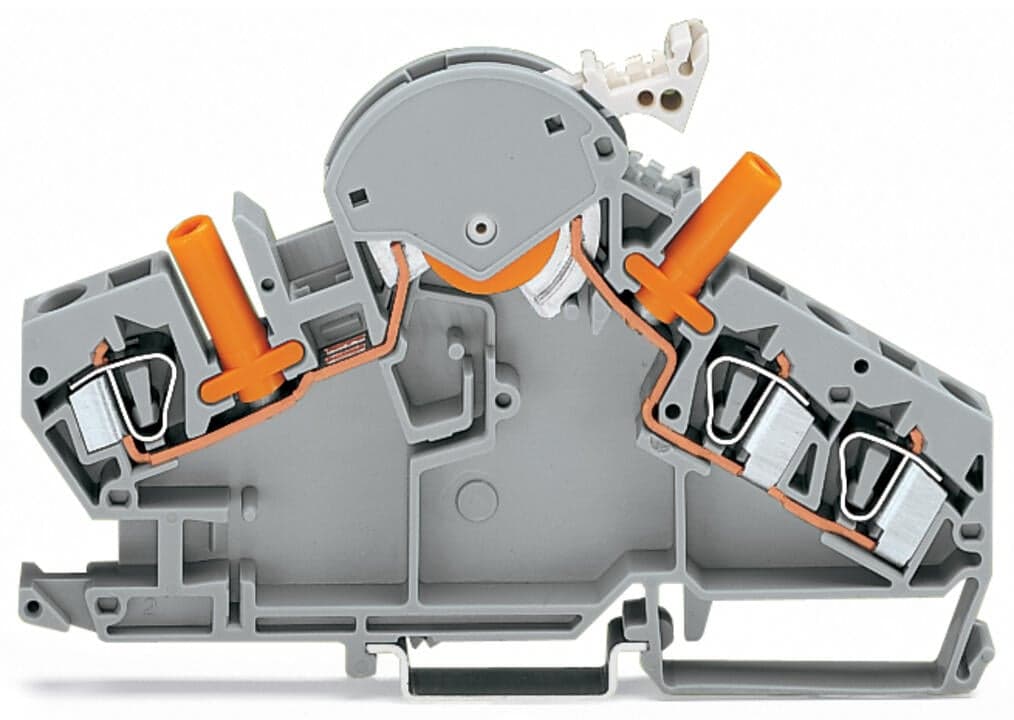

Product Model
282-860
Selling Points
- 1High-Performance Connectivity: Reliable and fast connections with CAGE CLAMP technology.
- 2Durable Design: Withstood temperatures from -60 to 105°F (-51 to 40°C).
- 3Versatile Mounting: Easy installation on DIN-35 rail (35 x 15 / 35 x 7.5).
- 4Safety Features: Touch-proof test sockets for secure testing.
- 5Wide Wire Compatibility: Supports wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 2 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 122?mm?/ 4.803?inches | Depth from upper-edge of DIN-rail | 75?mm?/ 2.953?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.688MJ | Weight | 43.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918651325 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | b6a1a0c4-d967-4b73-8264-26b7a2f1d673 |
SCIP notification number (Belgium) | 5ebb27a6-ee6f-4403-a9a0-751475daa89c | SCIP notification number (Bulgaria) | 567463bd-b2ea-492d-a674-b0b9acbbcde1 |
SCIP notification number (Czech Republic) | a619f96d-b58c-410e-8fd1-53850ca1a501 | SCIP notification number (Denmark) | f6a9b199-87c7-4912-ae06-d08a16701e27 |
SCIP notification number (Finland) | 7022eb2d-b0ab-4b2a-abdc-41b2488711cd | SCIP notification number (France) | da6eaec0-36d7-411f-b90f-67535d957947 |
SCIP notification number (Germany) | af398722-937d-4dd7-aeb1-810d9003d387 | SCIP notification number (Hungary) | 63a1d84f-4936-4ad9-aa06-97f889d1507e |
SCIP notification number (Italy) | fee9f4f1-c537-4eb4-b1db-936fda0ac347 | SCIP notification number (Netherlands) | 366fe36f-fa9a-4127-9c70-153f70314e68 |
SCIP notification number (Poland) | af1ca10e-1941-400f-9b8c-eb51550e5cb0 | SCIP notification number (Romania) | ae8d26f7-0f2c-47fc-a70b-6f87514b1c6d |
SCIP notification number (Sweden) | fd945375-eb0b-421e-a1cd-1779018cef66 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 30A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
