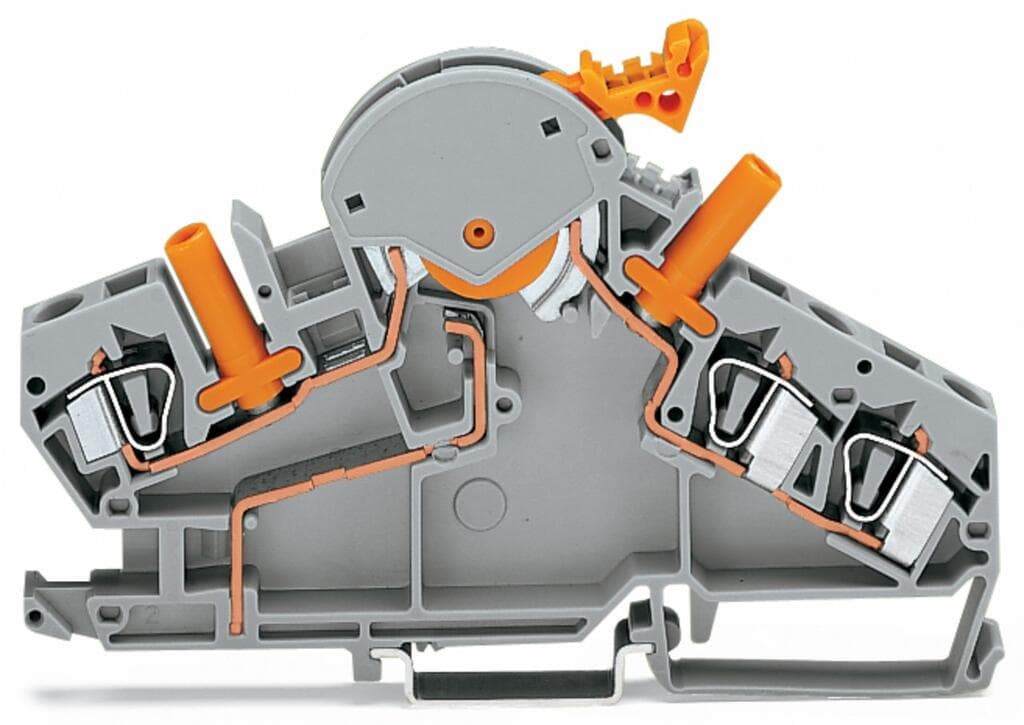

Product Model
282-870
Selling Points
- 1Designed for current transformer circuits with touch-proof test sockets.
- 2Compatible with DIN-rail 35 x 15 mounting.
- 3Features 4 mm Ø test plugs for secure connections.
- 4Ensures safe and reliable electrical connections.
- 5Meets industry standards with certifications like EN 60947.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 2 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 122?mm?/ 4.803?inches | Depth from upper-edge of DIN-rail | 75?mm?/ 2.953?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.688MJ | Weight | 46.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918692861 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 8b44b459-bc8a-4294-92d0-5870e5057aca |
SCIP notification number (Belgium) | 0ec07c85-16be-46aa-bacb-7aa795b3c27d | SCIP notification number (Bulgaria) | 00727039-2b5f-41b4-acbf-6e3db4a3f55c |
SCIP notification number (Czech Republic) | db80c370-42be-4189-8e20-6174ab37eabe | SCIP notification number (Denmark) | b54720c2-5897-4e86-b89d-583df5fd522e |
SCIP notification number (Finland) | 7533c0d4-2854-4c74-866f-041384878e88 | SCIP notification number (France) | 6a8a86e8-e8e3-4d99-a667-4c388f8f0615 |
SCIP notification number (Germany) | c3daf65b-956e-49f3-a4c1-089f7f3965ec | SCIP notification number (Hungary) | 13c0d4e3-52dc-46ea-950e-cab1a2645d03 |
SCIP notification number (Italy) | 97c46503-1131-4e03-9d44-f21af3785992 | SCIP notification number (Netherlands) | ed8acc29-fbbd-4d7b-9a32-afcb0a7225ec |
SCIP notification number (Poland) | 6f35dea7-095b-412e-9e05-7def11c33469 | SCIP notification number (Romania) | 12821fc1-b79c-476a-9ff9-67661d951494 |
SCIP notification number (Sweden) | ed6a607f-6da0-4d39-83de-73b6eaeb7552 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 30A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
