Product Model

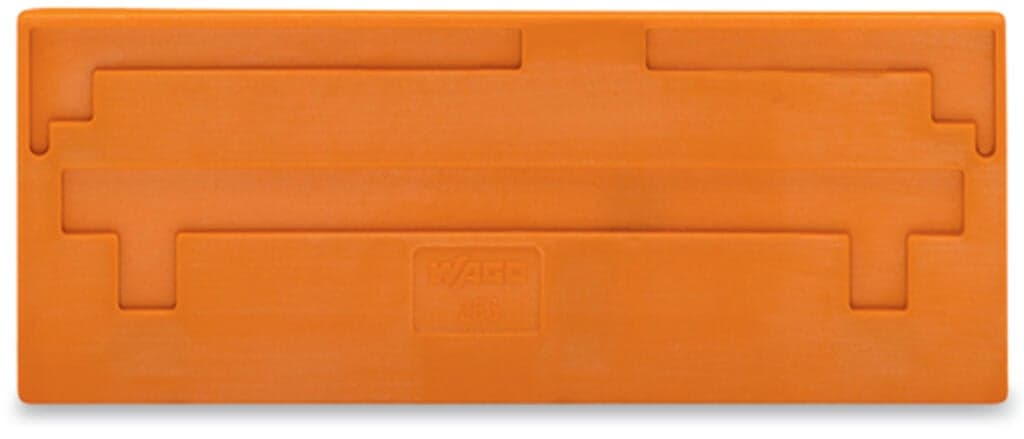

283-329
Selling Points
- 1No need for crimps, ferrules, or tinning; the CAGE CLAMP mechanism securely connects wires.
- 2The clamping force adjusts automatically to the conductor cross-section, ensuring a secure connection.
- 3Simple and fast installation process with minimal operator dependency.
- 4Accommodates wire sizes from 0.08 mm² to 35 mm², making it suitable for various applications.
- 5Constructed with stainless steel for long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 93.5?mm?/ 3.681?inches |
Depth | 36.5?mm?/ 1.437?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.142MJ | Weight | 4.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291736 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
