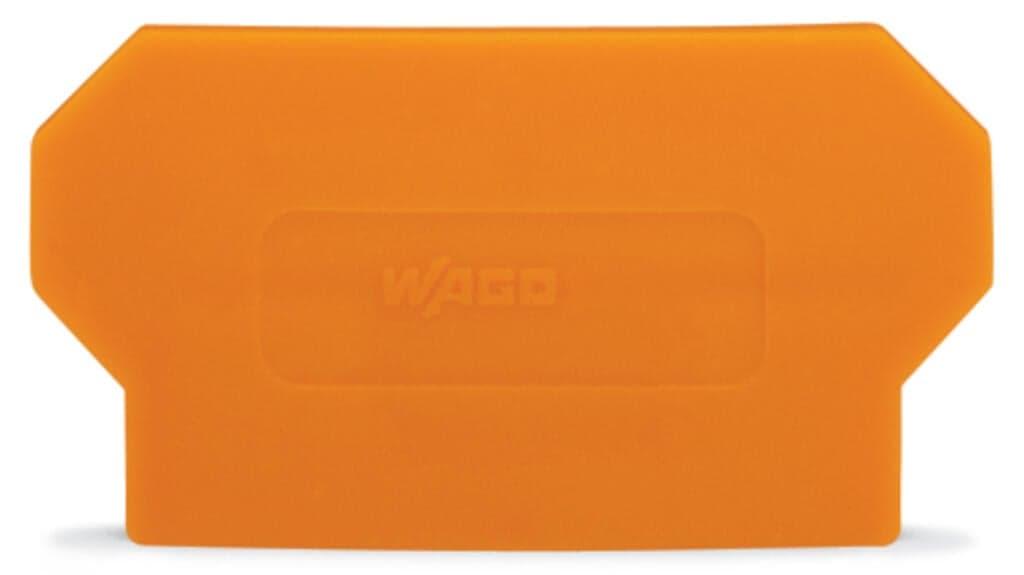

Product Model
283-338
Selling Points
- 1Made from polyamide (PA66) for excellent insulation properties.
- 2Meets environmental product compliance standards, ensuring sustainability.
- 32mm thick and oversized for added strength and stability.
- 4Designed for seamless integration into rail-mounted terminal blocks.
- 5Suitable for various industrial applications requiring precise separation and insulation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 80?mm?/ 3.15?inches |
Depth | 35?mm?/ 1.378?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.113MJ | Weight | 3.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332199384 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
