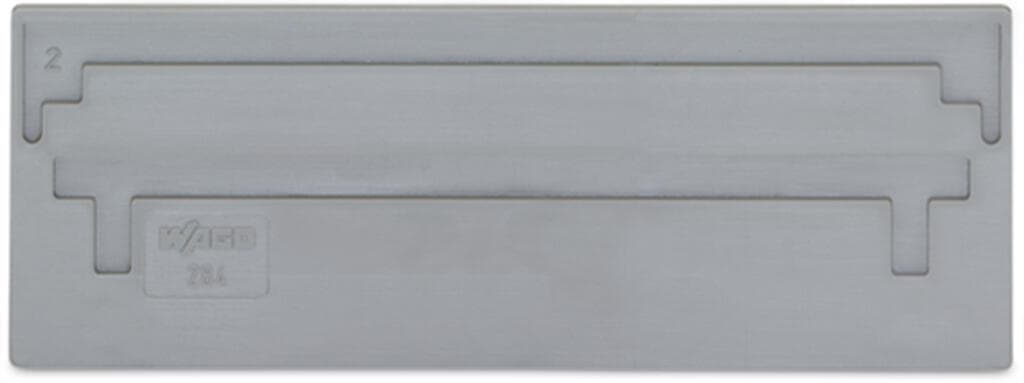

Product Model
284-309
Selling Points
- 1High-Quality Material: Made from durable gray material for long-lasting performance.
- 2Oversized Design: 2 mm thick and oversized for maximum functionality in electrical systems.
- 3Easy Installation: Designed for seamless integration into rail-mounted terminal blocks.
- 4Flammability Class V0: Meets stringent safety standards with a flammability class of V0.
- 5Versatile Application: Suitable for various electrical applications, including industrial and commercial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 96.5?mm?/ 3.799?inches |
Depth | 33.7?mm?/ 1.327?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.139MJ | Weight | 4.7g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291606 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
