Product Model
284-343
Selling Points

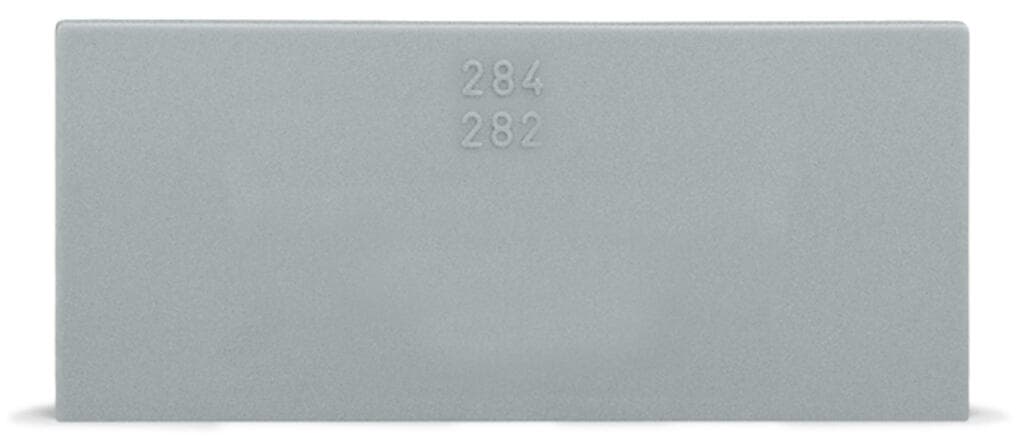

- 1The WAGO 284-343 step-down cover plate has a fire load of 0.04 MJ, ensuring safety in high-temperature environments.
- 2This product meets ROHS standards, making it suitable for environmentally conscious projects.
- 3Constructed from durable material with a weight of 1.34 g, providing long-lasting performance.
- 4Measuring 52 mm in depth and 23 mm in height, it fits seamlessly into DIN rail terminal blocks.
- 5Designed for easy installation and use in various industrial settings, including rail-mounted terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 52?mm?/ 2.047?inches |
Depth | 23?mm?/ 0.906?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.04MJ | Weight | 1.3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332195928 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
