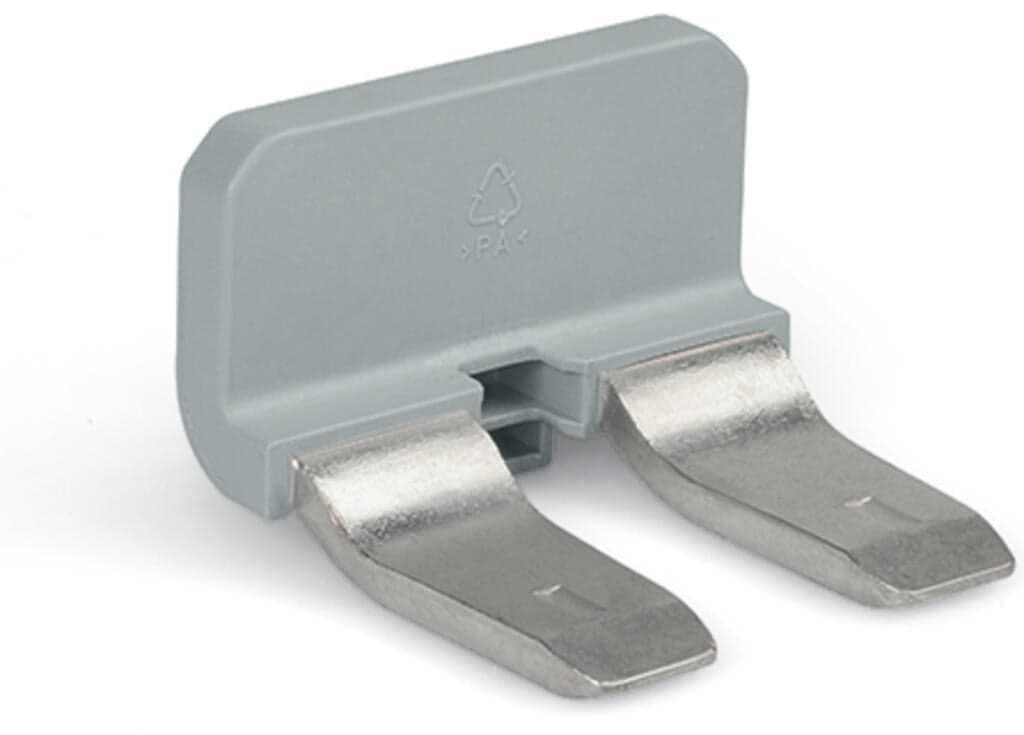

Product Model
285-1171
Selling Points
- 1High Current Rating: Supports up to 309 A for robust electrical connections.
- 2Insulated Design: Ensures safe and reliable operation with insulated adjacent jumpers.
- 3Durable Construction: Made from high-quality materials for long-lasting performance.
- 4Easy Installation: Simple to integrate into existing feed-through blocks for expanded connectivity.
- 5Compliant with RoHS: Meets environmental product compliance standards, ensuring eco-friendliness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 53.4 mm / 2.102 inches | Height | 34.5 mm / 1.358 inches |
Depth | 48 mm / 1.89 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Weight | 97g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(5)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143067003 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 309A |
Specifications may be subject to change without notice
