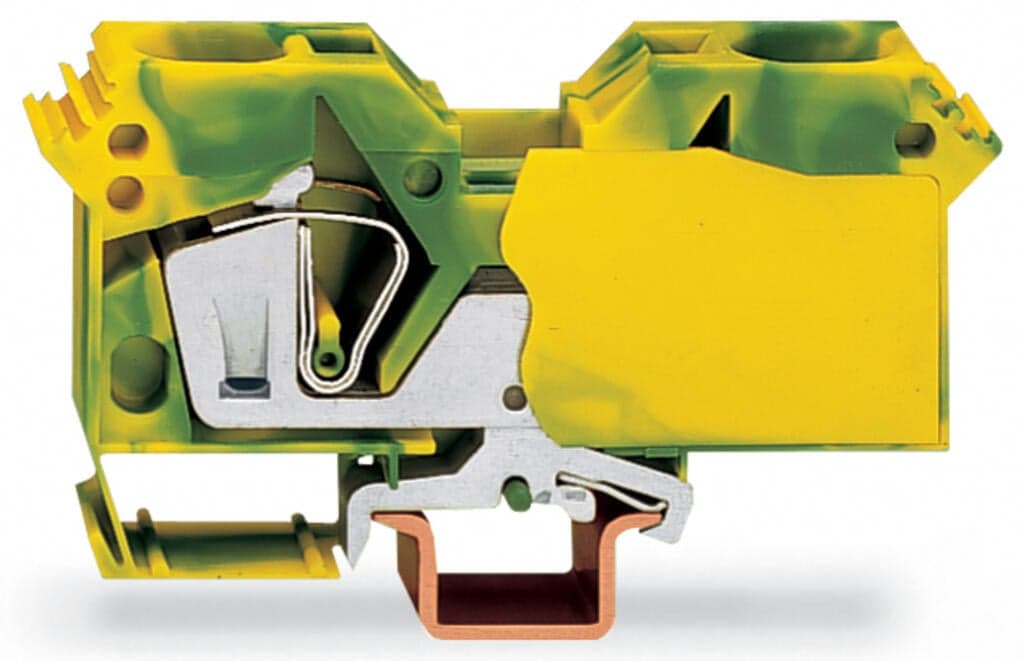

Product Model
285-607
Selling Points
- 1Secure Connection: Features WAGO's CAGE CLAMP technology for reliable and easy connections.
- 2Durable Design: Constructed with polyamide (PA66) insulation material for long-lasting performance.
- 3Easy Installation: Front-entry wiring and DIN 35 x 15 rail mount for straightforward installation.
- 4Versatile Use: Suitable for Ex e II applications and 2-conductor setups with 6-35 mm² wire size.
- 5Compact Size: Measures 115.5 mm in depth and 16 mm in width, perfect for space-constrained projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 115.5?mm?/ 4.547?inches | Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches |
Design | horizontal type | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.164MJ |
Weight | 152.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454116101 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | e5944eac-2fca-4a7d-a12e-e2accf7d449b |
SCIP notification number (Belgium) | 683c0e79-3405-4b8a-a51a-0a25d15bfc76 | SCIP notification number (Bulgaria) | c0b0fd45-d926-4e42-a713-91da023a5778 |
SCIP notification number (Czech Republic) | a75cf4f3-3c9d-4a49-91cd-e705a00e0a39 | SCIP notification number (Denmark) | 3ec59c00-4e46-4c85-940e-2d586c190774 |
SCIP notification number (Finland) | 8547406f-401b-4681-a99d-356c283dce37 | SCIP notification number (France) | 25a9e600-83fc-4b7e-a187-a8725e935460 |
SCIP notification number (Germany) | efa64b14-e7c5-42cd-8e89-717781b9487c | SCIP notification number (Hungary) | 6ec83af9-31b7-4006-8766-90021554834b |
SCIP notification number (Italy) | c1ba2cbd-82ad-4080-9120-c73c7b6c244b | SCIP notification number (Netherlands) | f47fe414-599b-4710-b813-def7e7d165cc |
SCIP notification number (Poland) | 4957e9e6-08b5-46dd-8b31-7dbaaaded3d2 | SCIP notification number (Romania) | 33b72bd7-736f-4111-8485-2ef3a35604fe |
SCIP notification number (Sweden) | 7085483b-3bec-4094-9783-f29cf5199752 | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 35 mm2 |
Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG | Strip length | 23?mm?/ 0.91?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
