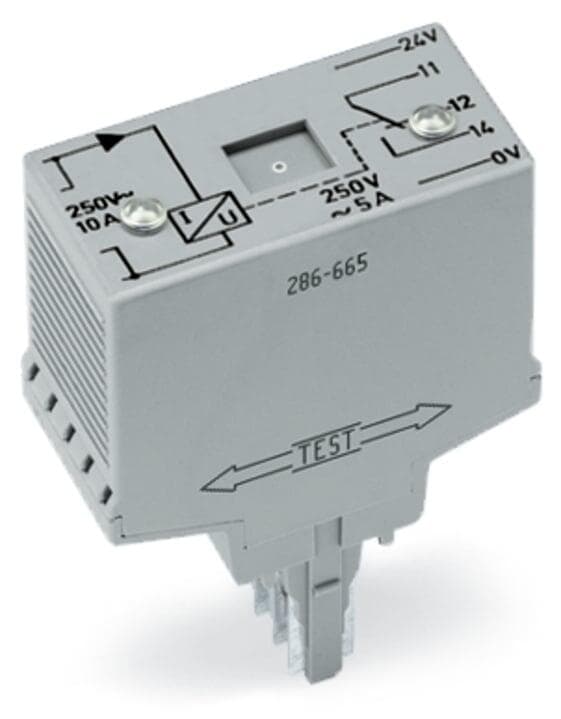

Product Model
286-665
Selling Points
- 1Accurate Current Measurement: Measures AC currents from 1A to 10A with high precision.
- 2Adjustable Threshold: Allows for customizable switching threshold to suit various applications.
- 3Fast Response Time: Responds in as little as 200ms for quick and reliable monitoring.
- 4Compact Design: Designed for plug-in mounting and DIN-rail installation, saving space in your setup.
- 5Robust Indication: Equipped with a red LED status indicator and energized relay for clear status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | DC?24?V | Current consumption at nominal supply voltage | ≤?28?mA |
Voltage drop | 23 … 850?mV | Measurement span (max.) | 1 … 10?AAC |
Switching threshold (adjustable) min. | 1A | Response time | 200 ms |
Number of changeover contacts | 1 | Number of break/switch-off contacts | 1 |
Limiting continuous current | 5?A | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?1250?VA | Status indicator | Red LED; Energized relay (current < switching threshold) |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength, input/output (AC, 1?min) | 1.5kV<sub>rms</sub> |
Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
Housing design | Plug for carrier terminal blocks | Color | light gray |
Fire load | 9.712MJ | Weight | 58g |
Ambient temperature (operation) | -25 … +40 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 5 … 85?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-18-02 |
eCl@ss 9.0 | 27-37-18-02 | ETIM 9.0 | EC001440 |
ETIM 8.0 | EC001440 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4050821254850 |
Customs tariff number | 8536490050 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 34 | SCIP notification number (Bulgaria) | ab0a0b59-6bf2-4923-88e9-ad17aab6e282 |
SCIP notification number (Czech Republic) | 3416c4f9-58a6-4234-a637-e4ce34879bc3 |
Specifications may be subject to change without notice
