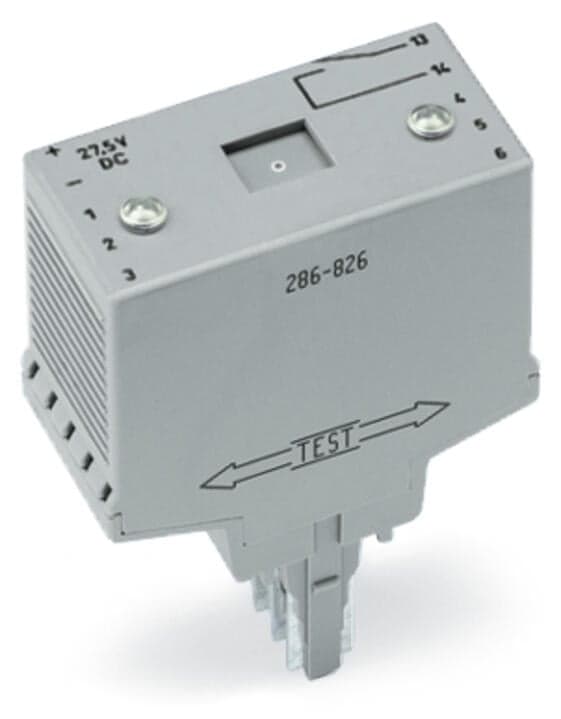

Product Model
286-826
Selling Points
- 1High-Voltage Compatibility: Rated for 250V AC/120V DC, ensuring robust performance in various electrical environments.
- 2Compact Design: Pluggable module for carrier terminal blocks, measuring 25 mm x 52 mm, perfect for space-constrained applications.
- 3Reliable Functionality: AND gate module with 6 inputs, providing precise logic operations for automation systems.
- 4Efficient Power Handling: Switching power of up to 120W (750VA), suitable for demanding applications.
- 5Durable Construction: Light gray color, made from high-quality materials, ensuring long-lasting performance in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal operating voltage | DC?24?V | Operating voltage | 24 … 27.5?VDC |
Current consumption at nominal supply voltage | ≤?34.6?mA | Number of make/switch-on contacts | 1 |
Limiting continuous current | 3?A | Switching Voltage, Max. | AC?250?V;?DC?120?V |
Switching power (resistive) max. | AC?750?VA;?DC?120?W | Specialty functions | with 6 inputs |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 2 | Dielectric strength, input/output (AC, 1?min) | 2.5kV<sub>rms</sub> |
Width | 25?mm?/ 0.984?inches | Height | 52 mm / 2.047 inches |
Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches | Note (dimensions) | Depth including carrier terminal block |
Mounting type | Pluggable module for receptacle terminal blocks | Housing design | Plug for carrier terminal blocks |
Color | light gray | Fire load | 0.467MJ |
Weight | 34g | Ambient temperature (operation) | -25 … +40 °C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-24-22-16 |
eCl@ss 9.0 | 27-24-22-16 | ETIM 9.0 | EC001417 |
ETIM 8.0 | EC001417 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454344269 |
Customs tariff number | 8536904000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 5281a55b-a487-4781-82ca-b7efb8bf6945 |
SCIP notification number (Belgium) | 3c4c817a-5423-4b70-8a25-2f68a7fd56c3 | SCIP notification number (Bulgaria) | d745c98a-b3fc-4f20-9022-0bf84d30970f |
SCIP notification number (Czech Republic) | 548abcc0-6789-49d4-bc1e-40ce39006448 | SCIP notification number (Denmark) | a52d66fb-bc3f-437d-85f7-d31590f006a3 |
SCIP notification number (Finland) | fc9abcf3-d8e4-422d-8ed0-ab00d3fee734 | SCIP notification number (France) | c4a4cb73-79de-4571-8ded-f12abf68cb59 |
SCIP notification number (Germany) | d8934dff-2cc3-4281-83d8-eb2f14d22ccc | SCIP notification number (Hungary) | 7e3abc24-6569-4ec2-b9a3-06fa697cc59b |
SCIP notification number (Italy) | 8dcced28-7054-4217-b826-47875b8bdf82 | SCIP notification number (Netherlands) | 7ae47f24-1057-4539-bfe8-94614be395be |
SCIP notification number (Poland) | 0b3fc289-1cbe-480a-bc65-8915abb8f00c | SCIP notification number (Romania) | aba71ace-dd54-4214-a66d-d1aef1189139 |
SCIP notification number (Sweden) | dc8cc014-b686-4859-a119-e32db94a3065 |
Specifications may be subject to change without notice
