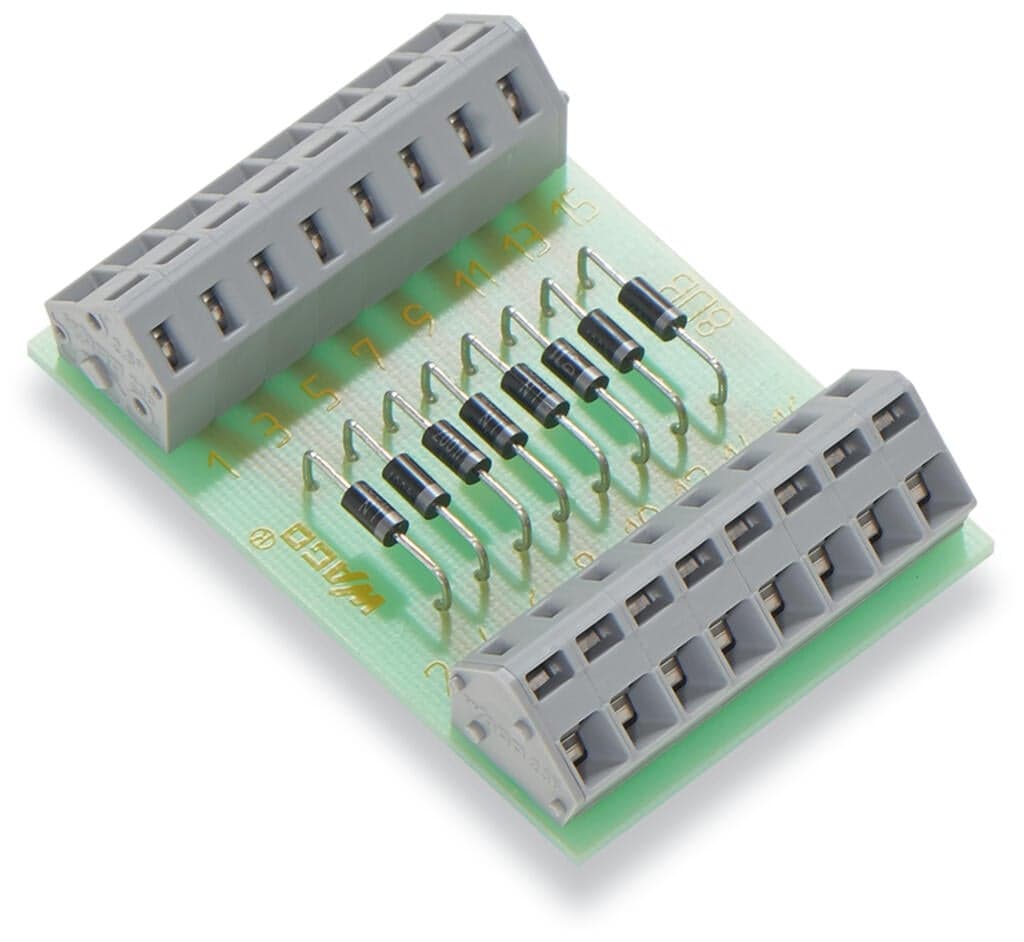

Product Model
289-101
Selling Points
- 11000 V for reliable operation.
- 2Durable housing design with a pollution degree of 2.
- 3Mounts on DIN-rail via DIN-rail adapter for seamless integration.
- 4Equipped with 8x 1N4007 diodes for efficient rectification.
- 5Measures 65.5 mm in depth and 47 mm in width for space-saving applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. | Operating voltage | ≤?AC/DC?250?V |
Peak reverse voltage | 1000V | Type of diode | 1N4007 |
Number/type of diode/LED | 8 diodes | Rectified current for each diode (resistive) | 1A |
Forward voltage per diode | 1.1V | Forward current per diode (resistive) | 1A |
Leakage current | 50μA | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 2 |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 236 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 42.5?mm?/ 1.673?inches |
Height from the surface | 32?mm?/ 1.26?inches | Depth | 62.5?mm?/ 2.461?inches |
Mounting type | DIN-35 rail | Housing design | PCB |
Fire load | 0.898MJ | Weight | 24.9g |
Ambient temperature (operation) | -25 … +40 °C | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-49 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454192747 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 5ada6374-77eb-424f-80eb-723f2fcafa07 | SCIP notification number (Belgium) | 334a18ff-925a-43ad-bcfd-8f79e07c93af |
SCIP notification number (Bulgaria) | f93dfea6-a1e4-4818-83f0-76cd0c3f6e0a | SCIP notification number (Czech Republic) | 58dd743d-1e10-4f3c-8f51-25fb489e6606 |
SCIP notification number (Denmark) | 3aea2fcd-83d1-4517-9d02-acbba9c44c2a | SCIP notification number (Finland) | b41d96c4-6f03-48ea-b791-97a137455463 |
SCIP notification number (France) | 847466ac-6d80-4a82-aeaa-d8ecd4fb5a71 | SCIP notification number (Germany) | 15085832-342e-4261-943d-69ad3d833846 |
SCIP notification number (Hungary) | 141f2cca-4028-47db-ba01-478f0c455a8f | SCIP notification number (Italy) | 559918c4-b26a-4371-83a1-2d70cc3a17ac |
SCIP notification number (Netherlands) | e201b11c-c03f-4da9-9729-fb3b49487a83 | SCIP notification number (Poland) | 0dcb713b-babc-4de5-bee0-ece9d55f208f |
SCIP notification number (Romania) | bd96b97d-f9e1-4c1a-93d0-494bb2dfc80e | SCIP notification number (Sweden) | b68e3c3f-85ec-4501-8c10-f9500a348888 |
Specifications may be subject to change without notice
