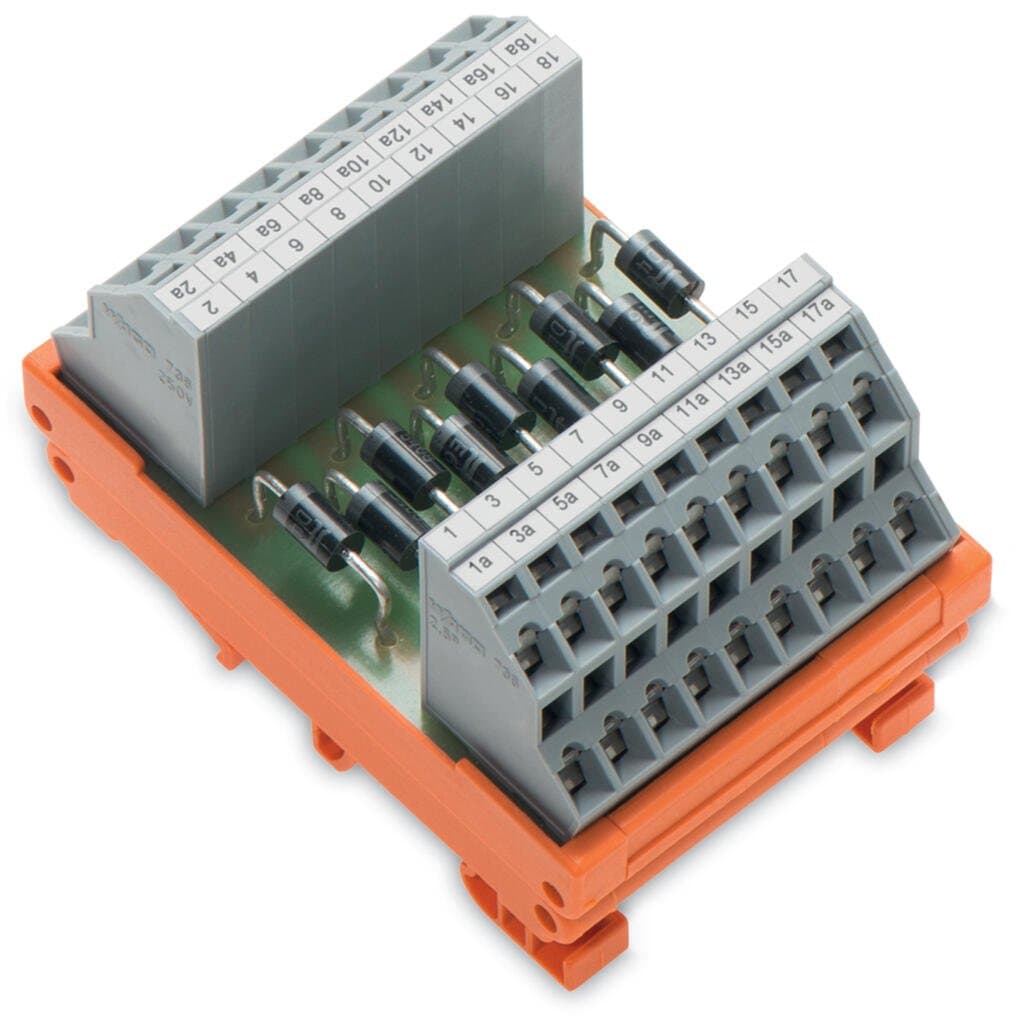

Product Model
289-105
Selling Points
- 1Compact design, up to 30% smaller than standard terminal blocks.
- 2High current rating of 3A and voltage rating of 250V.
- 3Easy installation with a conductor entry angle of less than 15°.
- 4Compatible with various wire gauges (28 to 12AWG).
- 5Reliable CAGE CLAMP connection technique for stripped solid and ferruled conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. | Operating voltage | ≤?AC/DC?250?V |
Peak reverse voltage | 1000V | Type of diode | 1N5408 |
Number/type of diode/LED | 9 diodes | Rectified current for each diode (resistive) | 3A |
Forward voltage per diode | 1.3V | Forward current per diode (resistive) | 3A |
Leakage current | 10μA | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 2 |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 736 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Width | 51?mm?/ 2.008?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 48?mm?/ 1.89?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Fire load | 0.534MJ | Weight | 80.6g |
Ambient temperature (operation) | -25 … +40 °C | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-49 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454198282 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Bulgaria) | 051bb2a9-5315-4f37-b0e3-aeb042beb2da |
SCIP notification number (Czech Republic) | dd3b9fed-68b1-4d60-8abb-e06327e7f4ca |
Specifications may be subject to change without notice
