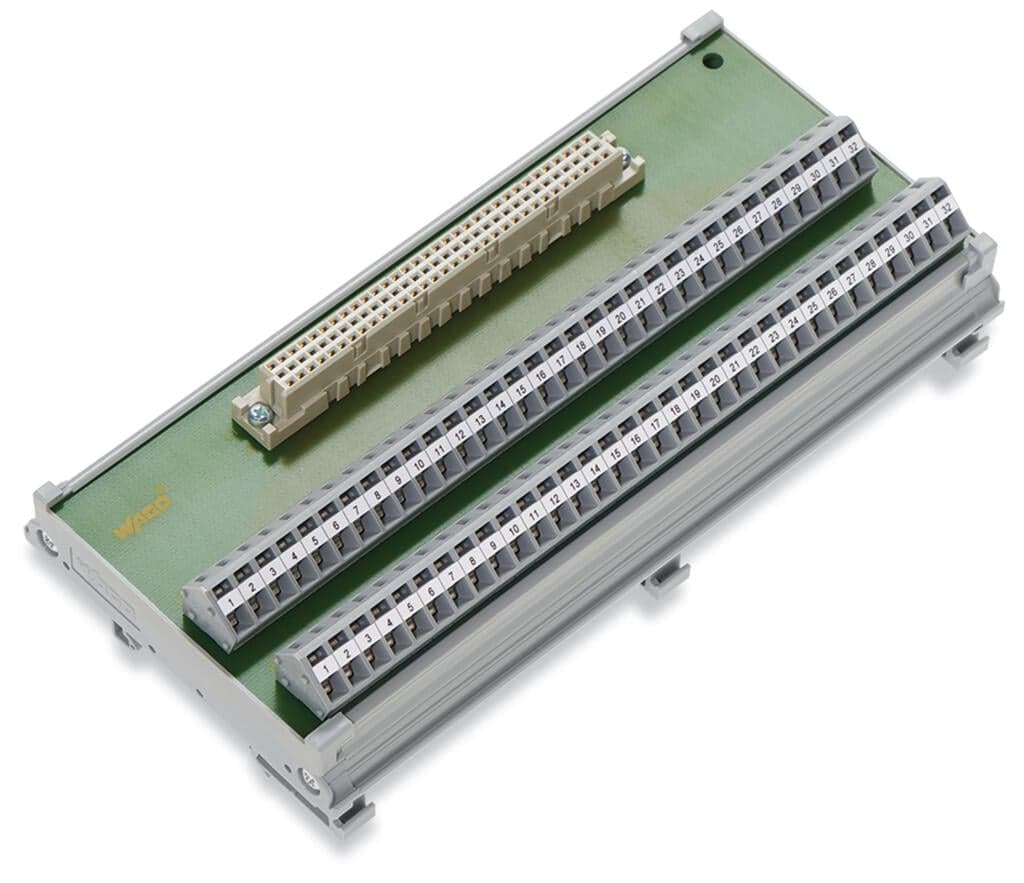

Product Model
289-531
Selling Points
- 1Pluggable Connector per DIN 41612: Ensures easy and secure connection.
- 264-Pole Design: Offers extensive connectivity options for various applications.
- 3Vertical Mounting: Ideal for space-saving installations in industrial settings.
- 4Mating Connector for Solder Connection: Provides a robust and reliable connection method.
- 5Double-Row PCB Terminal Blocks: Facilitates efficient wiring and signal processing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤100?VAC;?≤125?VDC | Nominal current | 1A |
Contact resistance (max.) | 20?mΩ | Rated voltage | 100V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Protection type | IP20 | Performance level | 2 / 400 mating cycles |
Width | 171?mm?/ 6.732?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Copper alloy; gold plated |
Fire load | 2.08MJ | Weight | 164.4g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454547301 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Bulgaria) | 8a6f0663-dc62-4076-9ce5-56c61daf26ee |
SCIP notification number (Czech Republic) | 1aadb34f-7bc5-4b8b-9c7a-4e597fe602aa | Pluggable connector | Pluggable connector per DIN 41612; Type C; Female connector |
Pole number 1 | 64 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (double-row) | Pole number (2) | 64 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 236 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
