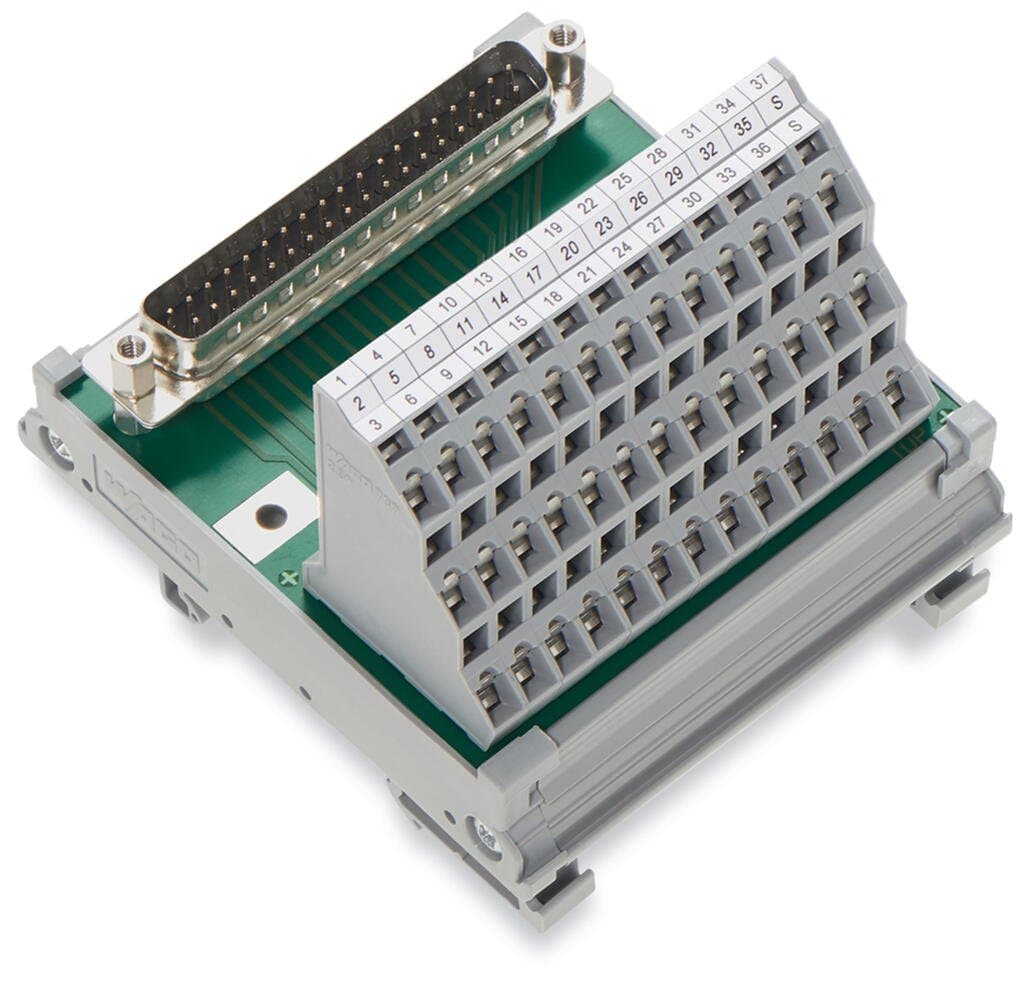

Product Model
289-620
Selling Points
- 1High-Performance Connectivity: The WAGO 289-620 interface module provides reliable and efficient connectivity with its 25-pole D-subminiature male connector.
- 2Versatile Mounting Options: Designed for vertical mounting on DIN-35 rail, ensuring easy integration into industrial control systems.
- 3Triple-Deck PCB Terminal Blocks: Features triple-deck PCB terminal blocks for secure and organized wiring.
- 4Shield Connection for Safety: Includes a shield connection for enhanced safety and protection against electrical noise.
- 5Durable Construction: Built with high-quality materials, ensuring a performance level of 2 / 200 mating cycles and a weight of 92.4 grams.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 2A |
Contact resistance (max.) | 30?mΩ | Specialty functions | with shield connection |
Rated voltage | 125V | Pollution degree | 2 |
Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Dielectric strength (channel/channel) (AC, 1 min.) | 1.3kV<sub>rms</sub> |
Insulation type | Functional insulation | Performance level | 2 / 200 mating cycles |
Strain relief | UNC 4-40 stud bolt | Width | 56?mm?/ 2.205?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 62?mm?/ 2.441?inches |
Mounting type | DIN-35 rail | Housing design | Mounting carrier |
Contact material (connector) | Au over Ni | Fire load | 1.032MJ |
Weight | 92.4g | Ambient temperature (operation) | -20 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Relative humidity | 85% (non-condensing) |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 6?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454362218 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | D-subminiature male connector |
Pole number 1 | 25 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 27 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 737 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
