Product Model
289-710
Selling Points

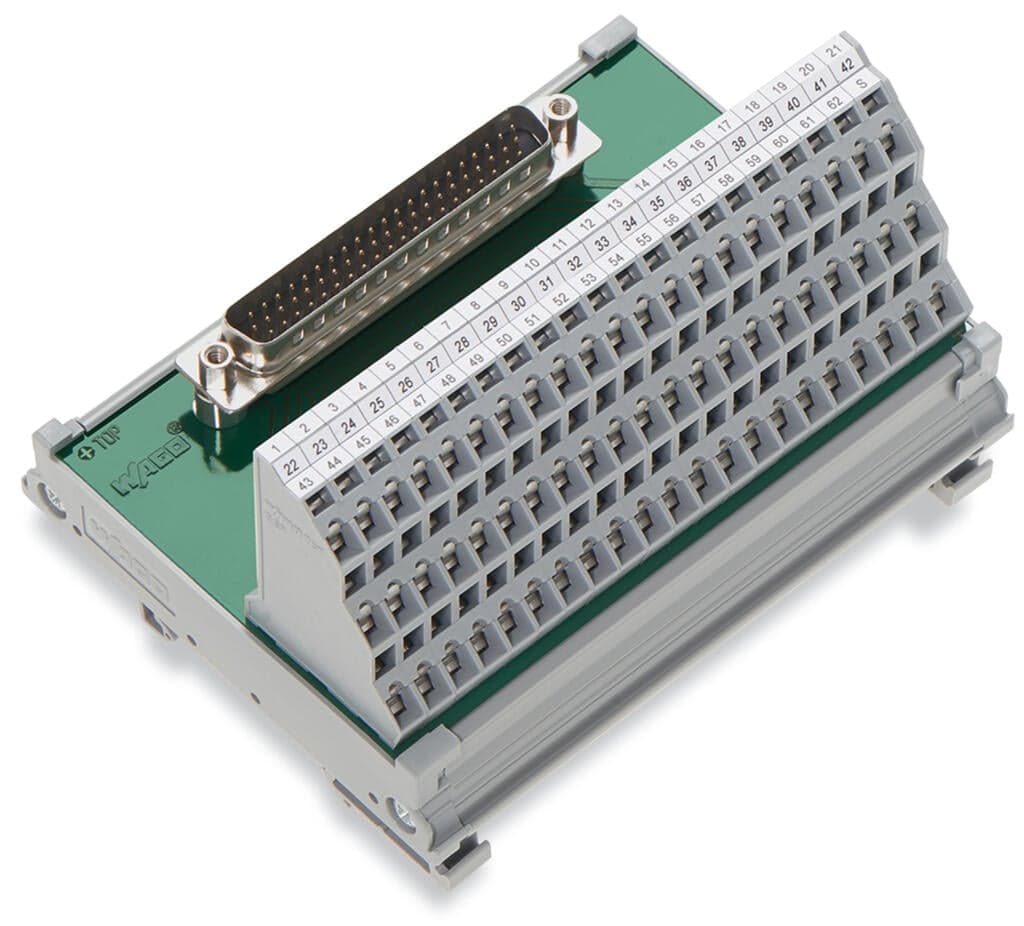

- 1High-Performance Signal Processing: The WAGO 289-710 interface module ensures safe and error-free signal processing with its HD-Sub-D male connector and 62-pole configuration.
- 2Versatile Connectivity: Equipped with triple-deck PCB terminal blocks and a mounting carrier, this module offers flexible and secure connections.
- 3Compact Design: Measuring 62 mm in width and 85 mm in depth, the 289-710 is ideal for space-constrained applications.
- 4Wide Operating Range: Compatible with AC 35V and DC 50V operating voltages, making it suitable for various industrial environments.
- 5Durable Construction: Built with high-quality materials, ensuring long-lasting performance and reliability in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating voltage | ≤?AC/DC?125?V | Nominal current | 1A |
Contact resistance (max.) | 15?mΩ | Specialty functions | with shield connection |
Rated voltage | 125V | Rated surge voltage | 0.8kV |
Pollution degree | 2 | Protection type | IP20 |
Performance level | 3 / 50 mating cycles | Strain relief | UNC 4-40 stud bolt |
Width | 62?mm?/ 2.441?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 62?mm?/ 2.441?inches | Mounting type | DIN-35 rail |
Housing design | Mounting carrier | Contact material (connector) | Au over Ni |
Fire load | 1.433MJ | Weight | 170.8g |
Ambient temperature (operation) | -20 … +55 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-14-11-52 |
eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 4?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332817202 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 008238af-7e58-409b-a80f-1d465ad920f9 |
SCIP notification number (Belgium) | 41b525f5-0928-4d5d-a4af-da18e543a037 | SCIP notification number (Bulgaria) | 38839f4f-a31f-407d-8738-c3eeac1a8d87 |
SCIP notification number (Czech Republic) | e326402f-f3fb-46ab-83ea-aca01d3ebcf3 | SCIP notification number (Denmark) | 49121548-7b27-48bf-a2e3-e1d6c93e469b |
SCIP notification number (Finland) | ce7fd2c5-4a29-4c22-89dd-a6f575590b05 | SCIP notification number (France) | f1a581ef-1f7a-4179-8006-d04fa2e77e4a |
SCIP notification number (Germany) | 220fb34a-b523-4db3-b4d4-22140de252f2 | SCIP notification number (Hungary) | c777e863-b321-445b-9d02-4ed2af5b8186 |
SCIP notification number (Italy) | eacaaaa2-5393-490b-bcd7-26707cae2c1b | SCIP notification number (Netherlands) | ff6511c9-72db-475f-a6df-3efaf96e36f1 |
SCIP notification number (Poland) | a9a9a2e8-13f0-45d0-ae91-df17105702ad | SCIP notification number (Romania) | 4daef53c-1d5b-4d7a-9a2e-ca477024ae22 |
SCIP notification number (Sweden) | 64e4a169-dbd3-4304-a6da-e0573cfda631 | Pluggable connector | HD D-sub male connector |
Pole number 1 | 62 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 64 |
Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 737 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
