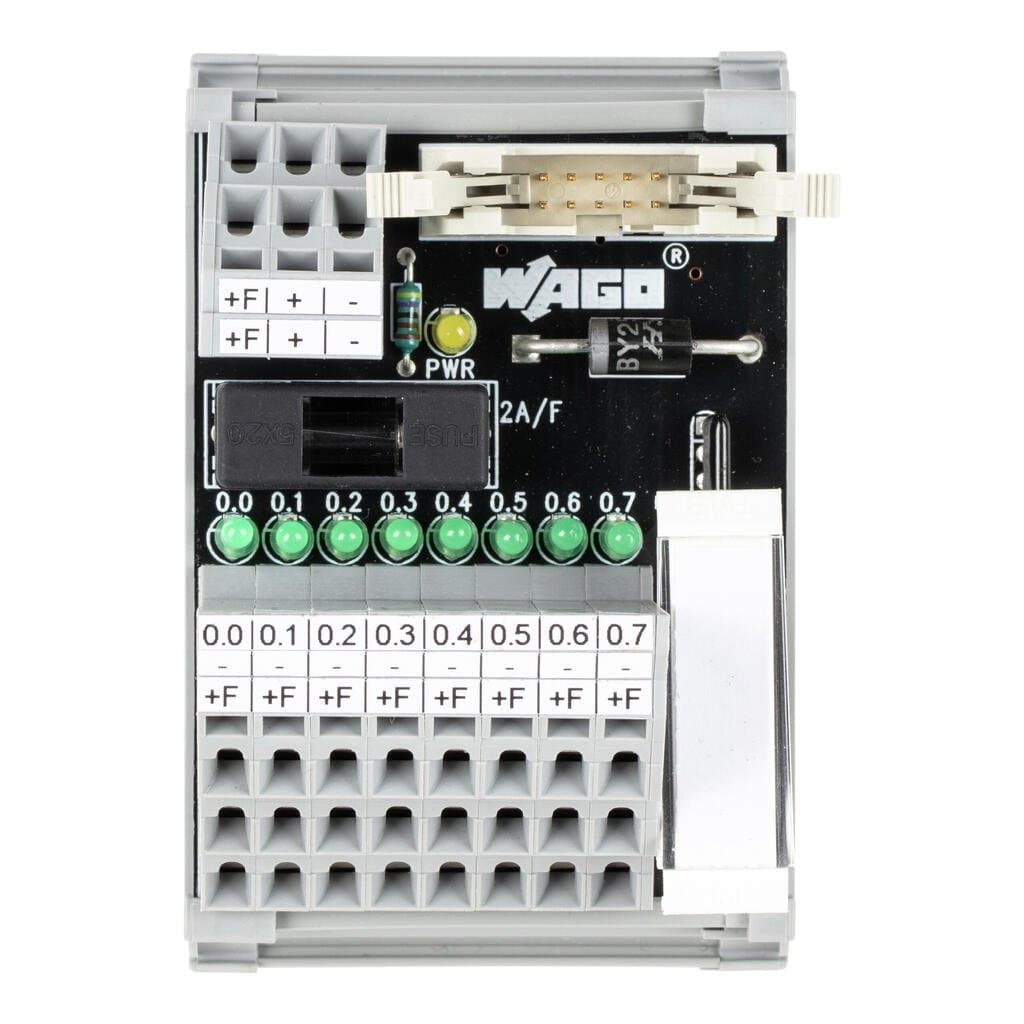

Product Model
704-2003
Selling Points
- 110-Pole Configuration with 8-Channel Digital Input/Output
- 2DIN-35 Rail Mounting for Easy Installation
- 3Compatible with Siemens S7-300, S7-400, and S7-1500 PLC Modules
- 4Operates in Ambient Temperatures from -20°C to +50°C
- 5Pluggable Connector per DIN 41651 for Secure System Connections
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Inputs/outputs | 8-channel digital input or output | Circuit type | 3-wire connection |
Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
Current consumption (status indication) | 5mA | Total current | 2A |
Limiting continuous current | 1?A | Status indicator | Green LED (channel) |
Internal fuse | 2?A | Rated voltage | 50V |
Rated surge voltage | 0.8kV | Pollution degree | 2 |
Width | 56?mm?/ 2.205?inches | Height | 85?mm?/ 3.346?inches |
Depth from upper-edge of DIN-rail | 63?mm?/ 2.48?inches | Mounting type | DIN-35 rail |
Fire load | 1.694MJ | Weight | 92g |
Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Relative humidity | 85% (non-condensing) | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | FR |
GTIN | 4050821161981 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 313-5BE01-0AB0 |
Siemens S7-1500 | 6ES7 522-1BF00-0AB0 | Siemens ET200SP | 6ES7 131-6BF00-0CA0 |
GE Fanuc 9030 | IC693 MDL634 | Schneider Modicon TM3 | TM3 DI8(G) |
Schneider Modicon M340 | BMX DDM 16022 | Schneider Modicon Quantum | 140 DDM 390 00 |
Schneider TSX | TSX DEY 08D2 | Rockwell Compact Logix | 1769 - OB8 |
Omron CJ1W | CJ1W-ID201 | WAGO I/O System 750 | 750-1502 |
WAGO I/O System 753 | 753-430 (x1) | Pluggable connector | DIN 41651 connector; male connector |
Pole number 1 | 10 | Connection type 1 | System |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
Design 2 | PCB terminal blocks (triple-deck) | Pole number (2) | 24 |
Connection type 2 | Field | WAGO connector 2 | WAGO 737 Series |
Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks (double-deck) |
Pole number (3) | 6 | Connection type 3 | Power supply |
WAGO connector 3 | WAGO 736 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
