Product Model

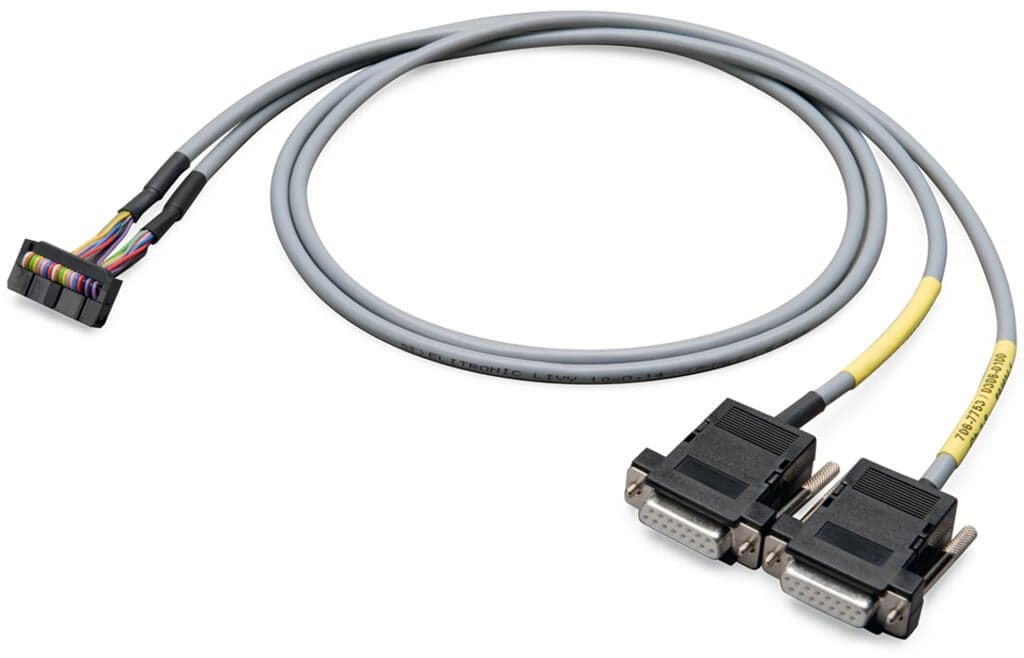

706-7753/306-100
Selling Points
- 1Fast and Easy Connection: Pre-assembled with 20-pin female connectors for quick setup.
- 2High Reliability: Designed for WAGO-I/O-SYSTEM 750 Series, ensuring seamless integration.
- 3Digital Input/Output: Supports 2x 8 digital inputs or outputs for versatile application.
- 4Durable Construction: Made with LiYY cable, offering excellent electrical insulation and protection.
- 5Compliant with Standards: Meets DIN VDE 47100 color coding and IP20 protection standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7?A. | Inputs/outputs | 2 x 8 digital inputs or outputs |
Operating voltage | ≤?AC/DC?35?V | Current per wire (max.) | 1A |
Cable type | LiYY | Color code | per DIN VDE 47100 |
Cable length | 1m | Weight | 133g |
Ambient temperature (operation) | -20 … +50 °C | Product Group | 30 (WAGO France) |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC000237 | ETIM 8.0 | EC000237 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | FR |
GTIN | 4050821052968 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | Pluggable connector per DIN 41651; female connector |
Pole number 1 | 20 | Connection type 1 | System |
Wire cross-section | 0.14mm2 | Connector 2 | D-sub female connector |
Pole number (2) | 15 | Connection type 2 | System |
Connector 3 | D-sub female connector | Pole number (3) | 15 |
Connection type 3 | System |
Specifications may be subject to change without notice
